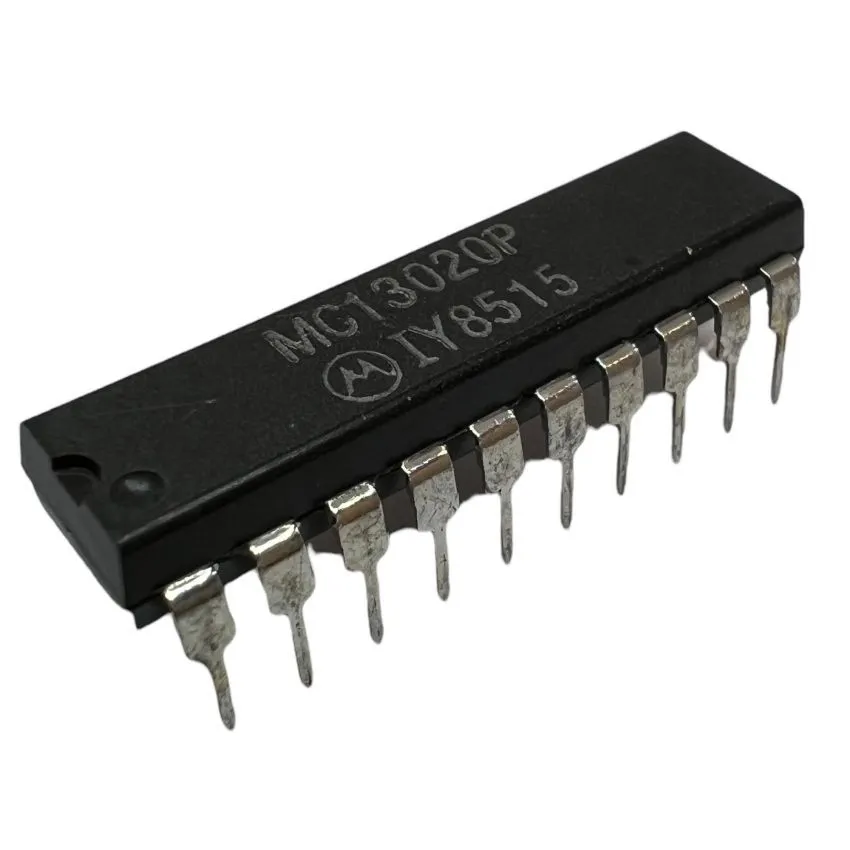

MC13020P, AM Stereo Decoder IC, DIP-20, 6-10V

The MC13020P is a C-QUAM AM stereo decoder IC, designed to process AM stereo signals with high fidelity. It features a PLL-based stereo demodulation system, ensuring accurate separation of L+R and L–R audio signals. Operating within a voltage range of 6V to 10V, the MC13020P provides automatic monaural/stereo switching based on signal conditions, ensuring optimal audio performance. The integrated envelope detector enhances audio clarity, while the stereo lamp driver output provides an external indicator for stereo reception. With its DIP-20 package, the MC13020P is ideal for AM radio receivers, broadcast equipment, and stereo decoding applications.

• AM Stereo Decoder IC – Implements C-QUAM AM stereo decoding for enhanced audio reception.
• PLL-Based Signal Processing – Uses a phase-locked loop (PLL) for L–R signal extraction to improve stereo sound fidelity.
• Integrated Envelope Detector – Ensures full-wave detection of the L+R audio signal for high-quality output.
• Automatic Mode Switching – Switches between stereo and monaural mode based on signal strength and interference.
• Low Power Consumption – Designed for efficient AM stereo reception with minimal power usage.
• DIP-20 Package for Easy Integration – Standard through-hole package for seamless PCB mounting and prototyping.
