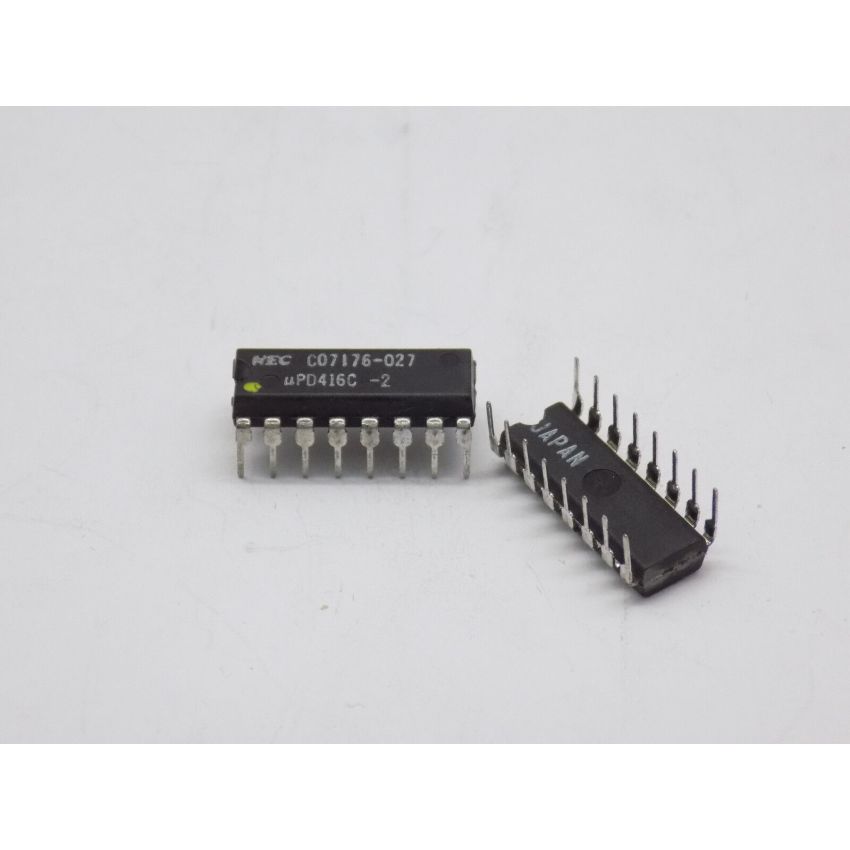

UPD416C-2, 16K DRAM, DIP-16

The UPD416C-2 is a 16K-bit Dynamic Random Access Memory (DRAM) designed for use in vintage computers, industrial systems, and telecommunications equipment. This memory module is organized as 16,384 words by 1 bit, making it an essential component for early computing architectures and embedded applications requiring volatile memory.

Operating at a standard +5V supply, the UPD416C-2 features a multiplexed address bus (7-bit row and 7-bit column addressing) to minimize the number of I/O pins required. This dynamic RAM requires periodic refreshing, with 128 refresh cycles within a 2ms timeframe, ensuring data integrity.

With an access time of 200ns, the UPD416C-2 provides a reliable memory solution for legacy systems and repairs. Packaged in a DIP-16 format, it remains a drop-in replacement for many classic computing and control applications.

• 16K Dynamic RAM (DRAM): Organized as 16,384 words x 1 bit, providing reliable volatile storage.
• Fast Access Time: Offers a 200ns access time, making it suitable for vintage computing and industrial applications.
• Standard 5V Power Supply: Operates at +5V with low power consumption for reliable system integration.
• Multiplexed Addressing: Uses a 7-bit row and 7-bit column addressing scheme, reducing pin count and simplifying circuit design.
• Industry-Standard DIP-16 Package: Compatible with a wide range of legacy and embedded systems.
• Refresh Requirement: Needs periodic refreshing with 128-cycle refresh within 2ms to maintain stored data.
