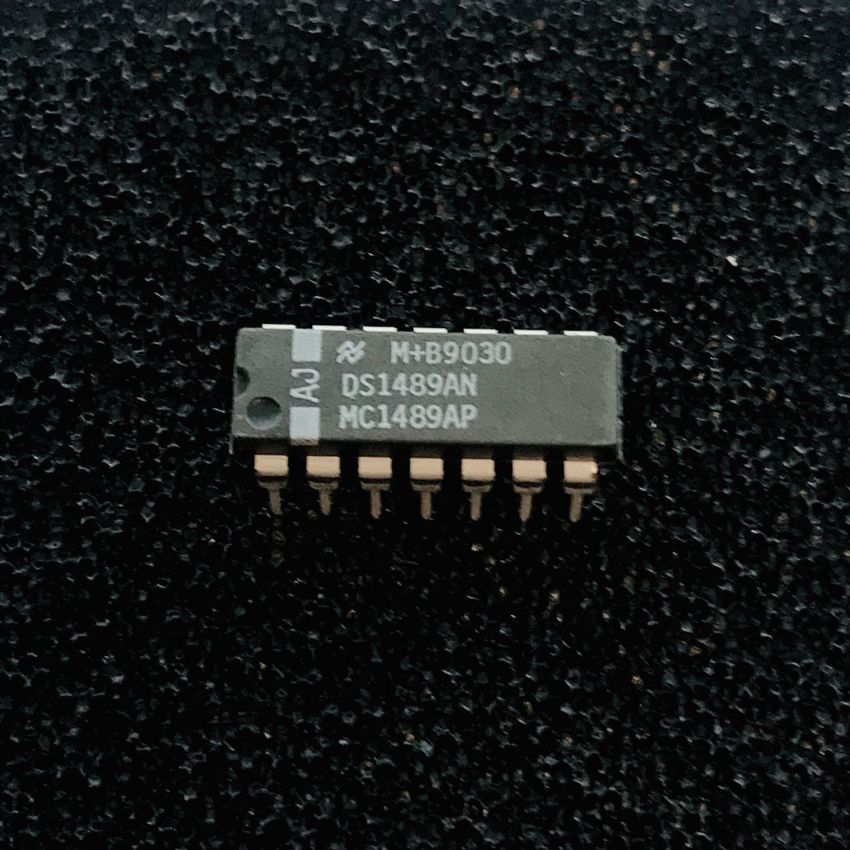

DS1489AN, Quad Line Receiver, 14-Pin DIP Package

The DS1489AN is a quad line receiver designed to interface data terminal equipment with data communications equipment. It translates input signals to TTL output levels, accommodating a wide range of input voltages. The device features high input impedance, minimizing the load on connected circuits, and includes short-circuit protection to enhance reliability. Its standard 14-pin DIP package facilitates easy integration into various digital communication systems.

• Quadruple Line Receivers – Provides four independent line receivers in a single package.
• Wide Common-Mode Voltage Range – Operates effectively over a broad range of input voltages.
• TTL-Compatible Outputs – Delivers output signals compatible with TTL logic levels.
• High Input Impedance – Ensures minimal loading on the signal source.
• Short-Circuit Protection – Protects the device from damage due to short circuits.
• Standard 14-Pin DIP Package – Encased in a 14-pin Dual In-Line Package for straightforward PCB integration.
