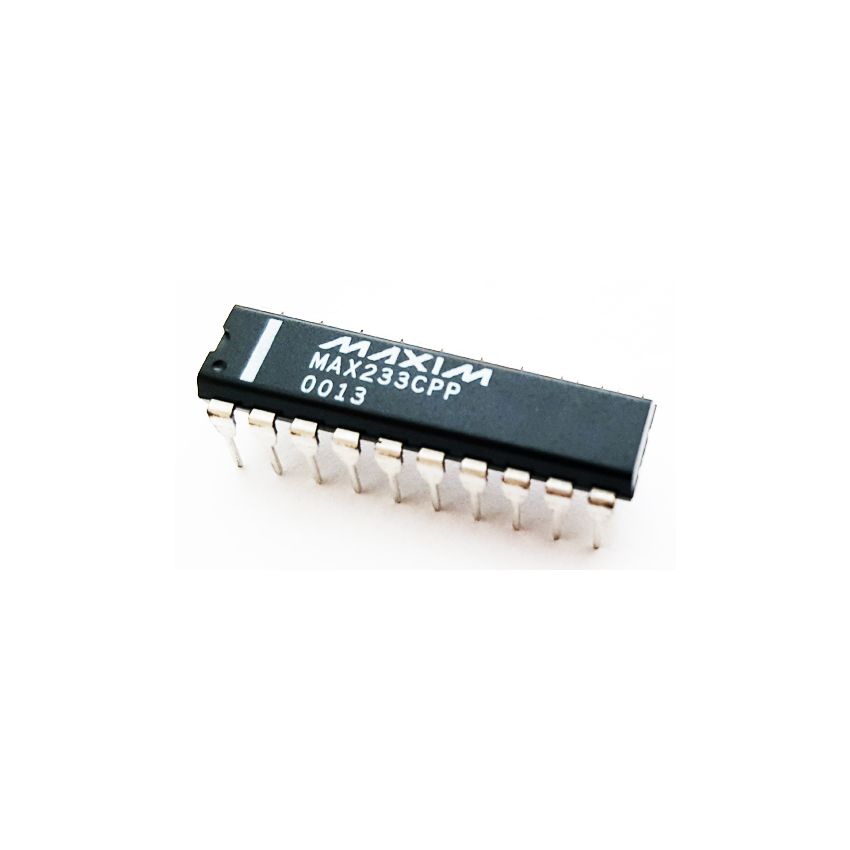

MAX233CPP, RS-232 Transceiver, 20-Pin DIP Package

The MAX233CPP is an RS-232 transceiver that includes integrated charge pump circuitry, allowing it to operate from a single +5V power supply without the need for external capacitors. It provides two drivers and two receivers, facilitating full-duplex serial communication. The device supports data rates up to 120 kbps and is designed for low power consumption, making it suitable for various applications, including portable and battery-powered devices.

• Integrated Charge Pump Circuitry – Eliminates the need for external capacitors, simplifying design and saving board space.
• Single +5V Power Supply Operation – Operates from a single +5V supply, eliminating the need for +/-12V power supplies.
• Dual Drivers and Receivers – Provides two RS-232 drivers and two RS-232 receivers, facilitating full-duplex communication.
• High Data Rate – Supports data rates up to 120 kbps, suitable for various serial communication applications.
• Low Power Consumption – Designed for efficient operation, making it ideal for battery-powered applications.
• Standard 20-Pin DIP Package – Encased in a 20-pin Dual In-Line Package for straightforward PCB integration.
