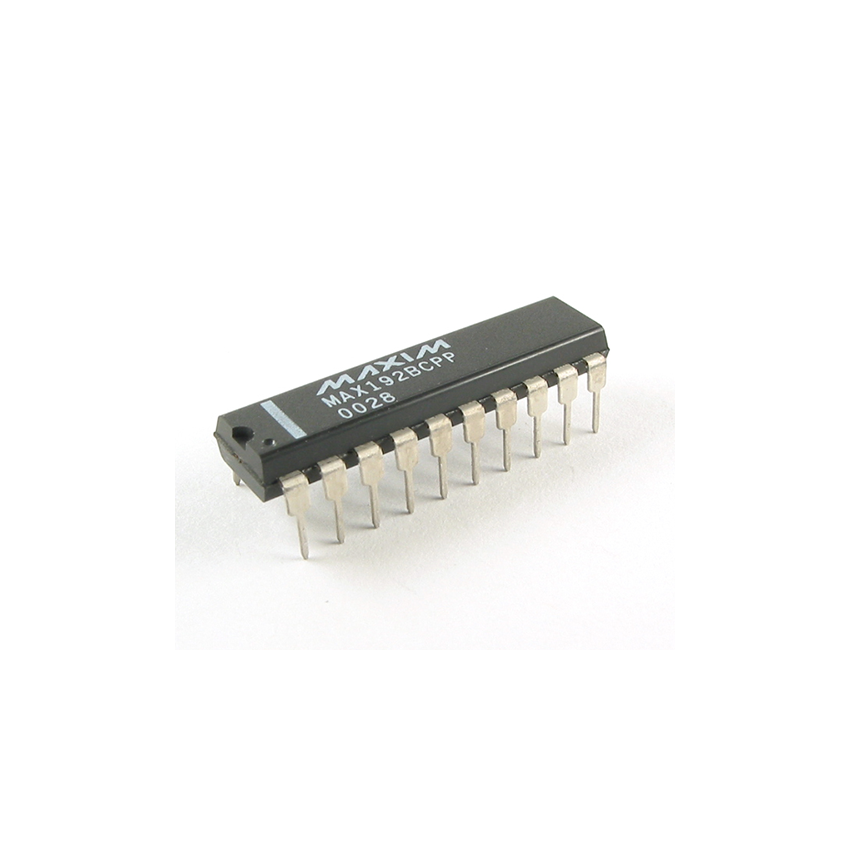

MAX192BCPP,Analog-to-Digital Converter,DIP-20 Package,10-Bit,8-Channel,Low Power Serial

The MAX192BCPP is a highly versatile 10-bit analog-to-digital converter (ADC) designed to meet the needs of modern electronic systems. With its 8-channel multiplexer, it supports single-ended and differential inputs for flexible data acquisition, making it ideal for applications in medical instruments, portable data logging, and battery management systems.

This ADC operates on a single +5V supply and features ultra-low power consumption, enabling efficient operation in portable and battery-powered devices. Its 4-wire serial interface ensures compatibility with SPI, QSPI, and Microwire devices, while the built-in 4.096V voltage reference delivers accurate conversions with minimal drift.

The MAX192BCPP is enclosed in a compact DIP-20 package, simplifying installation and integration into various systems. Whether you're designing consumer electronics or automotive systems, this ADC ensures precise performance and low power consumption for optimal results.

• High Resolution: Features a 10-bit resolution for precise analog-to-digital conversions.
• 8-Channel Multiplexer: Supports single-ended and differential inputs, ideal for complex applications.
• Low Power Consumption: Operates at just 1.5mA, with power-down modes consuming as low as 2uA.
• Wide Compatibility: Compatible with SPI, QSPI, and Microwire interfaces for seamless integration.
• Integrated Voltage Reference: Includes an internal 4.096V reference with 30ppm/C drift for stable operation.
• Compact DIP-20 Package: Simplifies integration into PCB designs and prototyping setups.
