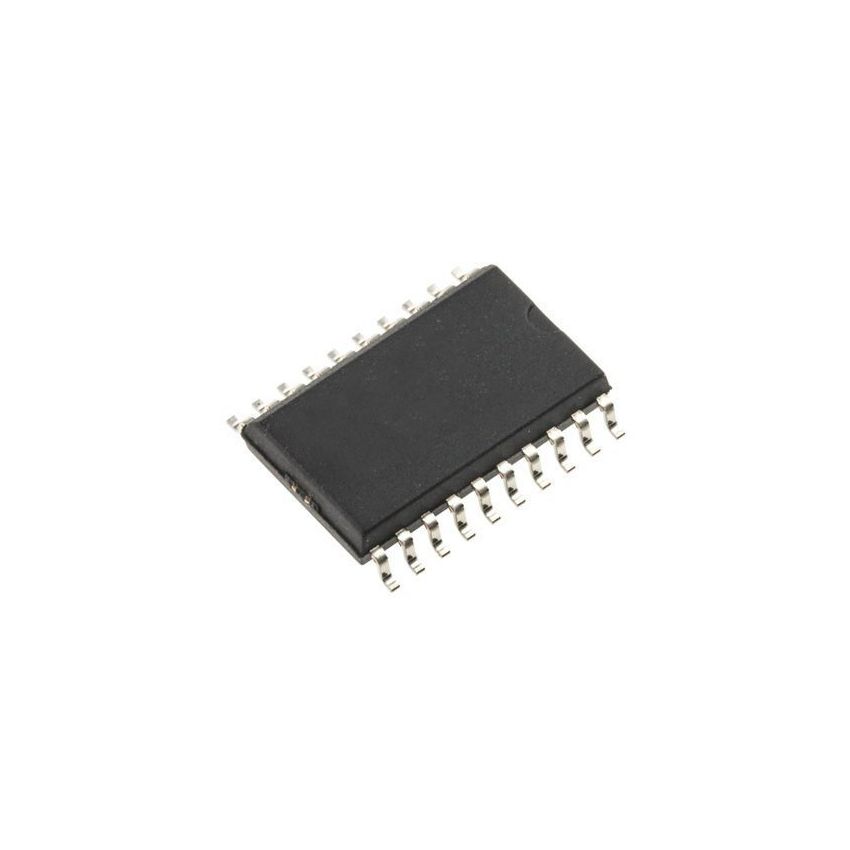

MAX186CCWP,Low-Power ADC,SMD-20,12-Bit,8-Channel

The MAX186CCWP is a high-performance, low-power, 8-channel 12-bit analog-to-digital converter (ADC) designed for a wide range of applications, including portable data logging, medical instruments, and robotics. This device integrates a track/hold circuit and a serial interface, making it easy to connect with microcontrollers and DSPs.

Operating on a single +5V or dual 5V supply, the MAX186CCWP supports unipolar or bipolar input configurations. Its SPI-compatible interface ensures smooth integration with most serial communication systems.

Engineered for precision, the MAX186CCWP achieves an exceptional 12-bit resolution with a maximum sampling rate of 133kHz. With its robust design, it is ideal for use in process control, battery-powered instruments, and automatic testing environments.

The compact 20-pin SMD package makes it suitable for space-constrained designs, while its low power consumption ensures long-lasting performance in portable applications.

• High Accuracy: Offers 12-bit resolution with a sampling rate of up to 133 kHz.
• Multiple Channels: Features 8 single-ended or 4 differential analog inputs.
• Flexible Power Options: Supports single +5V or dual 5V supplies for varied applications.
• Low Power Consumption: Operates at only 1.5mA with ultra-low power modes available.
• SPI-Compatible: Fully compatible with SPI, QSPI, and MICROWIRE serial interfaces.
• Compact Design: Available in a 20-pin SMD package for efficient PCB space usage.
