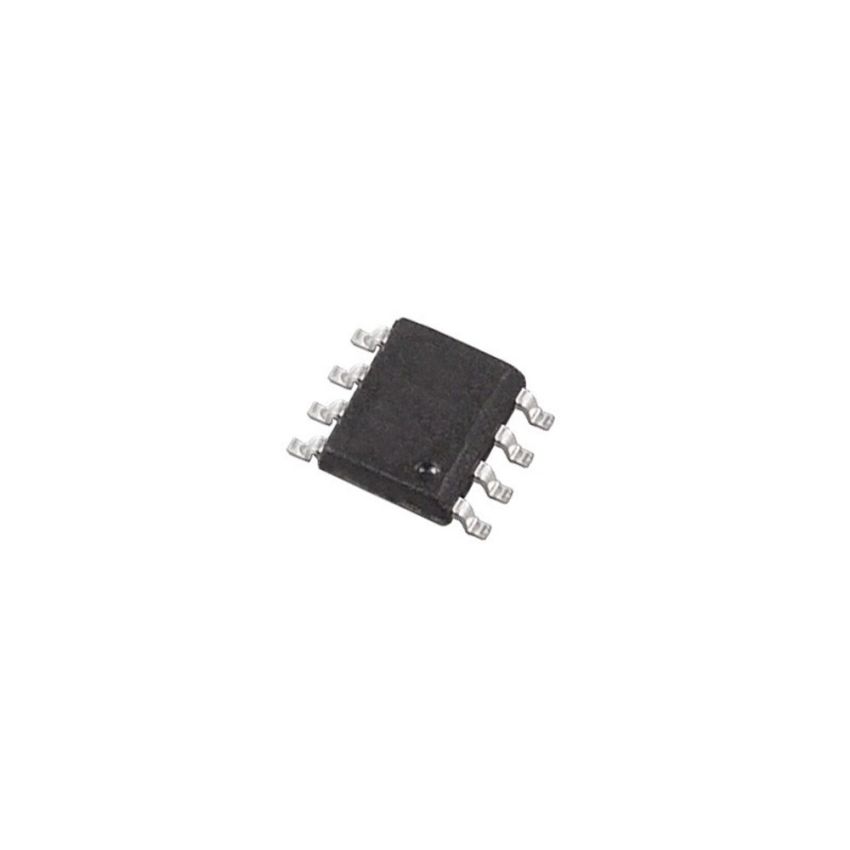

AIC1741C ,Low Dropout Adjustable Regulator, 1% Accuracy, 80mA Output Current,SOP-8

The AIC1741C - SOP-8 is a low dropout adjustable regulator designed for high-precision voltage regulation in compact, high-performance applications. Featuring a 1% accurate voltage reference and supporting output currents up to 80mA, this regulator ensures reliable performance across a wide input voltage range of -0.3V to 12V. It offers a fast transient response, low ground current of just 55μA, and exceptional temperature stability, making it ideal for demanding applications such as VGA card regulators, CPUs, and battery-powered systems.

The AIC1741C integrates advanced features such as an error flag output to indicate voltage dropout, a low temperature coefficient for precision, and a programmable output voltage range from 1.235V to 11V. The compact SOP-8 surface-mount package allows for space-efficient integration into modern electronic designs, making it a versatile choice for power-sensitive systems.

Key Features:

• High Precision: 1% accurate 1.235V voltage reference for critical applications.
• Wide Voltage Range: Adjustable output voltage from 1.235V to 11V.
• Power Efficiency: Low ground current of 55μA for battery-operated devices.
• Dropout Protection: Integrated error flag output warns of voltage dropout conditions.
• Compact Design: SOP-8 package ensures efficient use of board space.
• Fast Response: Excellent transient response for maintaining stable operation under dynamic loads.
