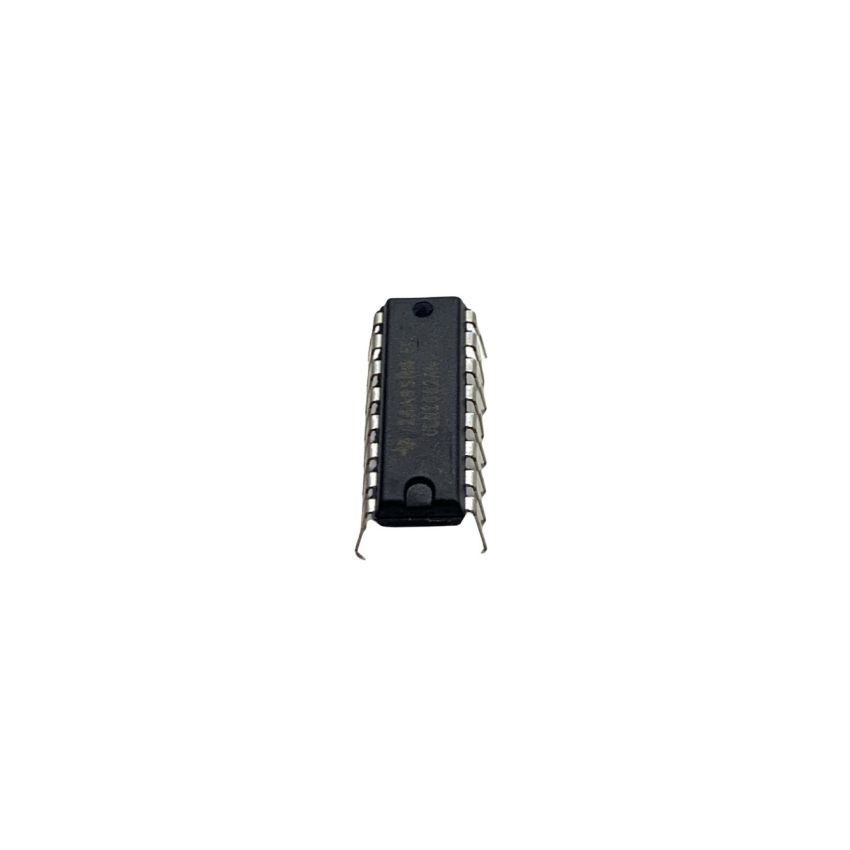

ULN2002AN, Darlington Transistor Array, 500mA Output Current, 50V Maximum Voltage,DIP-16

The ULN2002AN is a high-voltage, high-current Darlington transistor array IC in a DIP-16 package, designed for a wide range of applications, including relay drivers, LED arrays, and inductive loads. With integrated clamp diodes to protect against voltage spikes and a maximum collector current of 500mA per Darlington pair, this IC is ideal for driving high-power loads. It is compatible with TTL and CMOS logic, providing flexibility in interfacing with different systems.

Key Features :

• Integrated Clamp Diodes: Provides protection against voltage spikes from inductive loads.
• Seven Darlington Pairs: Supports multi-channel switching with high efficiency.
• 500mA Collector Current: Per Darlington pair for driving high-current loads.
• Wide Logic Compatibility: Compatible with TTL and CMOS inputs (5V to 15V).
• Robust Design: Operates in harsh environments with temperatures from -40C to +85C.
• Applications: Relay drivers, LED arrays, solenoid control, and industrial automation.
