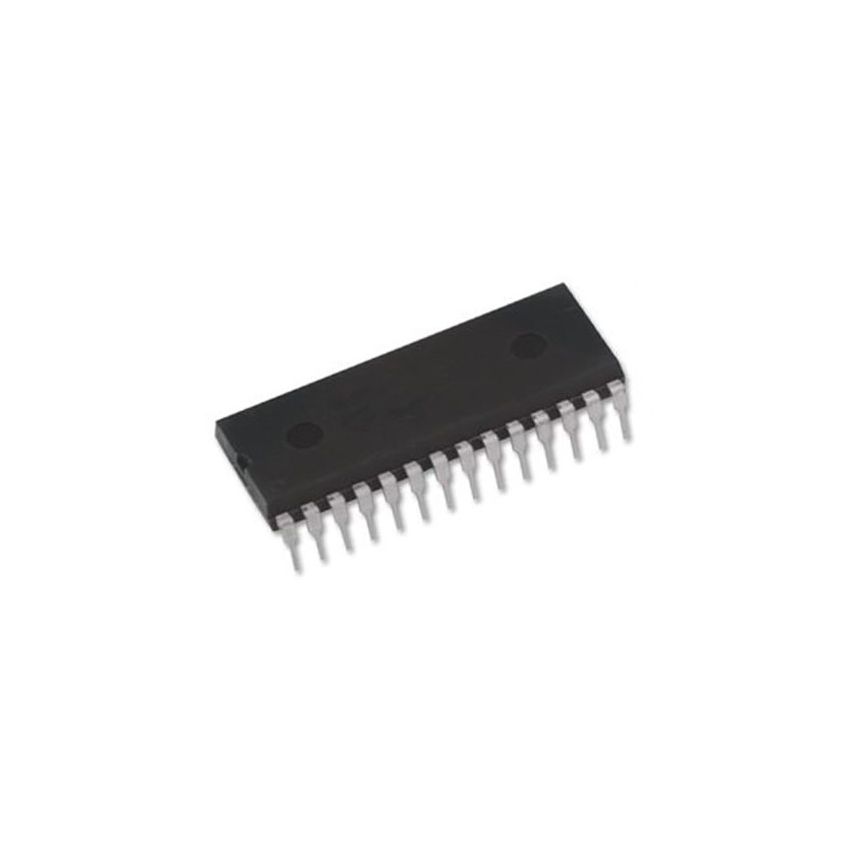

LM1203CN, RGB Video Amplifier System, DIP-28, 70MHz Bandwidth, Contrast Control

The LM1203CN is a high-performance RGB video amplifier system designed for high-resolution color monitor applications. This IC provides exceptional signal integrity with a wide bandwidth of 70 MHz at -3 dB, allowing it to support a wide range of high-definition video signals. It features three matched video amplifiers and three black-level clamp comparators for brightness and contrast control, ensuring optimal video quality. Additionally, it includes independent gain control for each video channel and low-impedance outputs to drive video lines directly. The device operates with a wide input voltage range of 4V to 10V, making it suitable for various video systems.

This video amplifier system is optimized for applications such as computer monitors, video projectors, and professional video equipment, providing precise color control and signal processing. With an integrated clamp gate and contrast control, it delivers accurate signal reproduction and minimizes distortion, making it ideal for high-performance video applications.

Key Features :

• High Bandwidth: 70 MHz bandwidth at -3 dB ensures clear and sharp video signals.
• Integrated Contrast Control: Three internally gated comparators allow precise contrast adjustments.
• Independent Gain Control: Adjustable gain control for each video amplifier to fine-tune output levels.
• Low-Impedance Outputs: Directly drive video lines with low output impedance for enhanced signal integrity.
• Wide Operating Voltage: Supports a voltage range of 4V to 10V, providing flexibility in various applications.
• Temperature Range: Operates efficiently from 0°C to 70°C, making it suitable for demanding environments.
