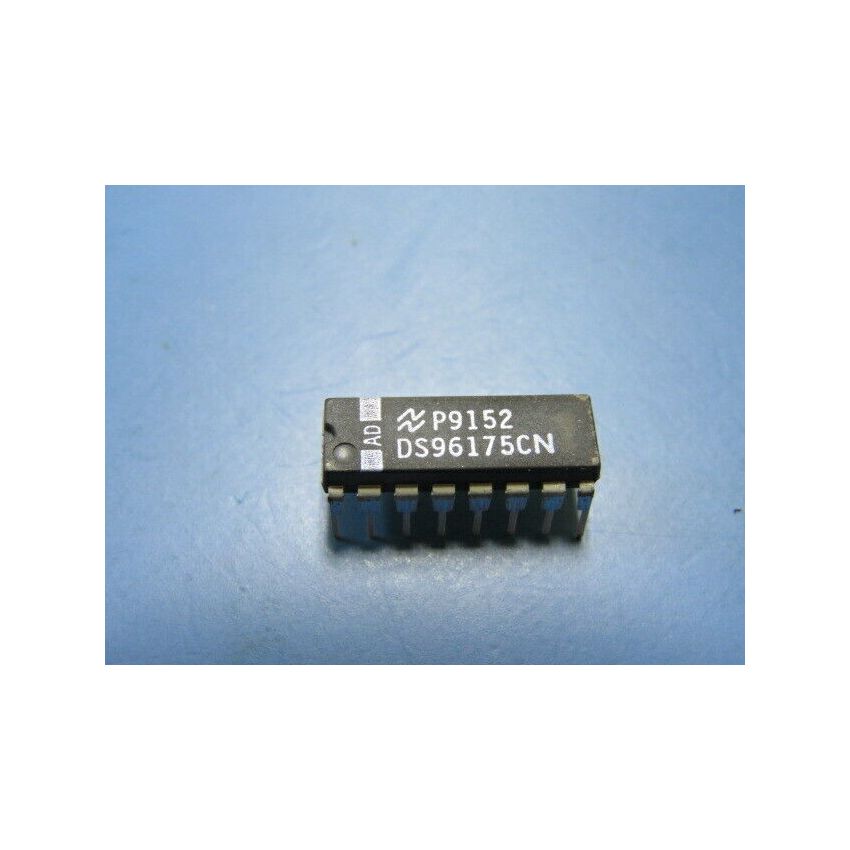

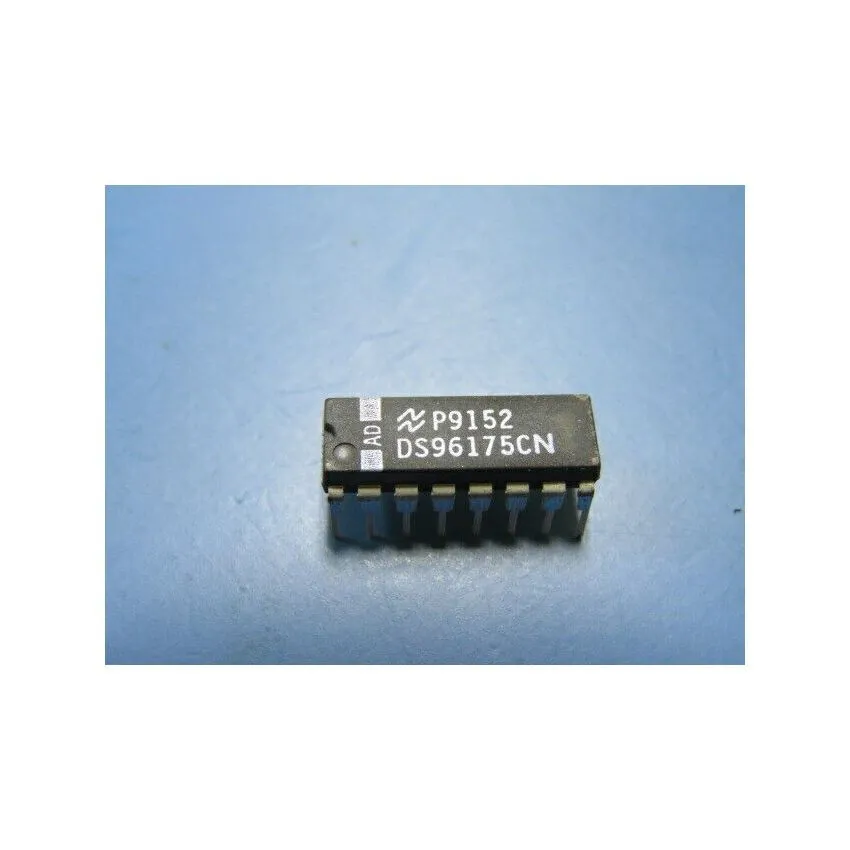

DS96175CN RS-485/RS-422 Quad Differential Line Receiver, DIP-16 Package

The DS96175CN is a high-speed quad differential line receiver designed to meet the requirements of EIA Standard RS-485 and RS-422. It integrates four independent differential receivers into a single 16-pin DIP package, providing efficient utilization of board space. The device features TRI-STATE® outputs, allowing for direct connection to a common bus and facilitating efficient data bus management. With a wide common-mode voltage range, the DS96175CN offers enhanced noise immunity, making it suitable for various industrial and commercial applications. Its low power consumption and thermal shutdown protection further contribute to reliable and energy-efficient performance.

• Quad Differential Receivers: Integrates four independent differential line receivers, facilitating multiple data channel reception in a single package.
• High-Speed Operation: Designed to meet EIA Standard RS-485 with data rates up to 10 Mbps, suitable for high-speed data communication applications.
• Tri-State Outputs: Features TRI-STATE® outputs, allowing for connection to a common bus and enabling efficient data bus management.
• Wide Common-Mode Range: Operates over a wide common-mode voltage range, enhancing noise immunity and reliability in various environments.
• Low Power Consumption: Engineered for low power consumption, making it suitable for energy-efficient applications.
• Thermal Shutdown Protection: Includes thermal shutdown protection to prevent damage from excessive power dissipation, ensuring device longevity.
