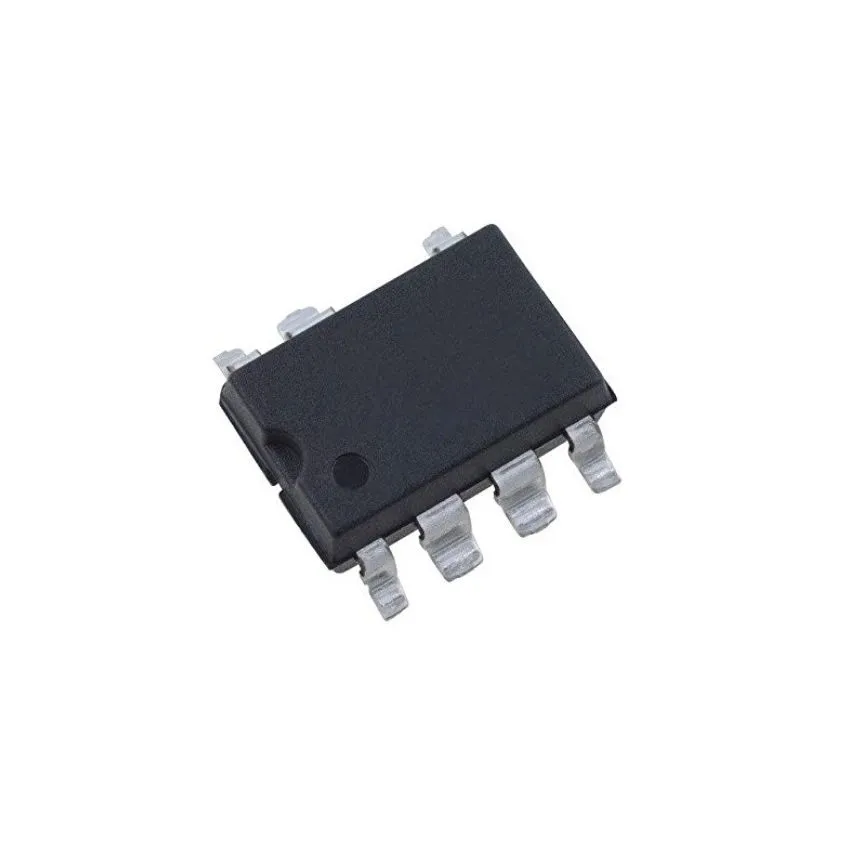

TOP224GN,Off-Line PWM Switcher,30W Output Power, Universal Input,SMD-8

The TOP224GN is a member of the TOPSwitch-II family, offering a cost-effective and reliable solution for off-line switch-mode power supplies. This device integrates a high-voltage power MOSFET, PWM controller, high-voltage startup circuitry, and fault protection in a single monolithic IC. Designed for flyback, forward, or buck-boost topologies, it provides a low-component-count solution for power supply designs.

With its wide input voltage range and robust design, the TOP224GN is ideal for applications such as adapters, chargers, and standby power supplies. The compact SMD-8 package ensures compatibility with space-constrained designs while maintaining excellent thermal performance.

• Integrated MOSFET and PWM Controller: Combines a high-voltage MOSFET with a PWM controller in a single package.
• Wide Input Voltage Range: Operates with universal AC input from 85 to 265 VAC.
• High Efficiency: Achieves up to 90% efficiency, suitable for energy-saving applications.
• Output Power: Delivers up to 30W with a universal input and 50W with a single input.
• Integrated Protections: Features thermal shutdown, current limiting, and auto-restart for fault recovery.
• Compact SMD-8 Package: Space-saving design for surface-mount applications.
