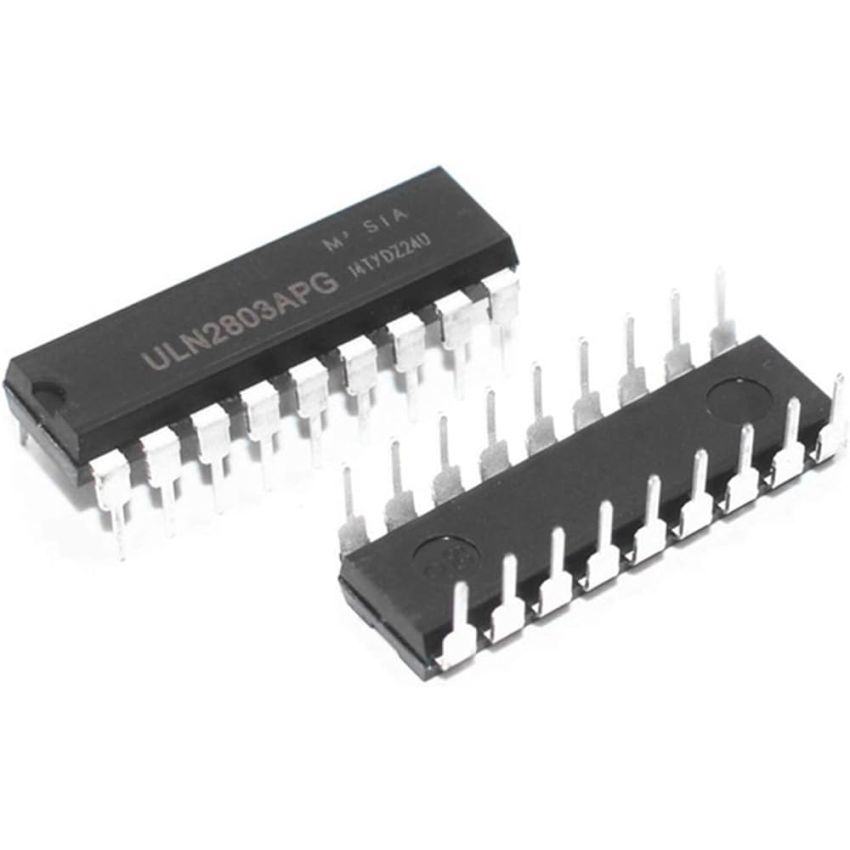

ULN2803APG,8-Channel Darlington Transistor Array,DIP

The ULN2803APG - DIP is an 8-channel Darlington transistor array that provides high-voltage and high-current driving capabilities, making it suitable for a variety of control applications. With integrated free-wheeling diodes and the ability to sink up to 500mA per channel, the ULN2803APG is ideal for driving relays, motors, LEDs, and other inductive loads. Its inputs are compatible with standard logic families, including TTL and CMOS, making it an excellent choice for use in microcontroller-based systems. Packaged in a standard DIP-18 form factor, this IC is perfect for both prototyping and production use. It is widely used in industrial automation, consumer electronics, and motor control applications.

The ULN2803APG offers reliable performance with built-in protection features such as free-wheeling diodes and high-voltage tolerance, ensuring long-lasting durability even in demanding environments.

• 8-Channel Darlington Array: The ULN2803APG integrates eight Darlington transistors to provide high-current and high-voltage driving capabilities, perfect for switching relays, motors, or LEDs.
• High Voltage Handling: Capable of handling up to 50V on the output, allowing for easy integration into industrial applications or high-power control circuits.
• High Output Current Capability: Each output can sink up to 500mA, ensuring reliable performance even for high-power loads.
• Input Compatible with TTL/CMOS: The input stages are compatible with standard logic families, making the ULN2803APG suitable for various control applications, including microcontrollers and logic circuits.
• DIP-18 Package: Packaged in a standard DIP-18 form factor, it offers easy through-hole mounting for prototyping and production use.
• Built-in Free-Wheeling Diodes: The ULN2803APG has integrated free-wheeling diodes to protect against voltage spikes caused by inductive loads such as motors and solenoids.
