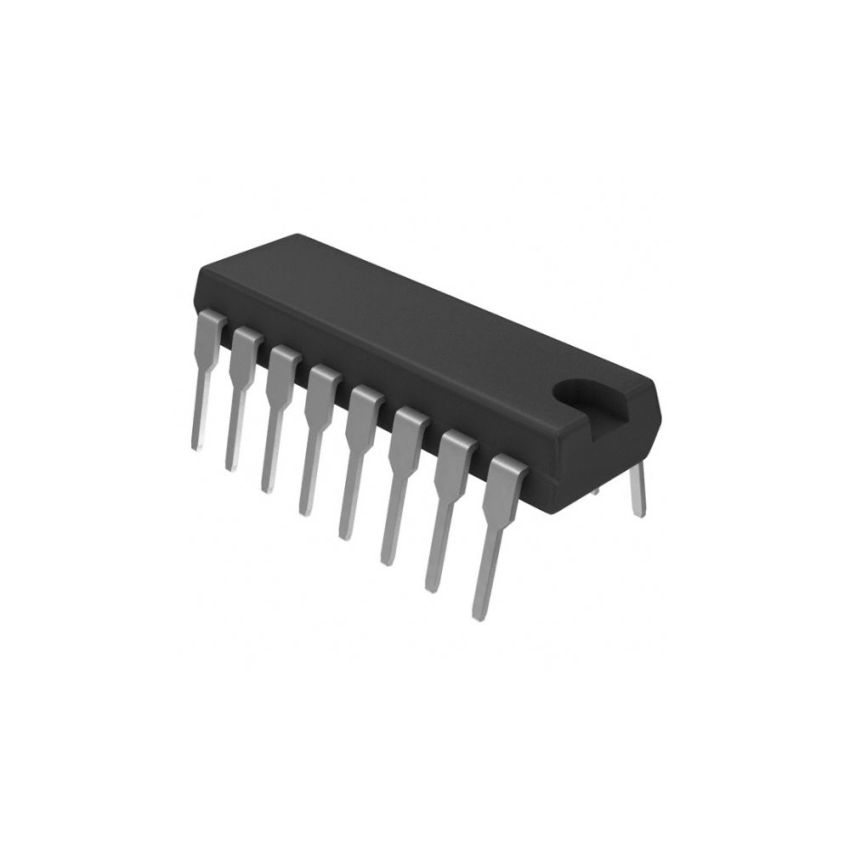

ULN2065B,Quad Darlington Transistor Array,DIP

The ULN2065B-DIP is a high-performance quad Darlington transistor array designed to interface logic circuits with high-voltage and high-current loads. Each of its four Darlington transistors delivers up to 1.5A collector current, with a minimum breakdown voltage of 80V, making it suitable for relay drivers, solenoid controllers, motor drivers, and LED displays.

Built-in suppression diodes protect the circuit against voltage transients from inductive loads, ensuring stable operation and extended component lifespan. The logic-compatible inputs allow seamless integration with 5V digital control systems, reducing the need for additional interface circuitry.

Encased in a PowerDIP package, the ULN2065B-DIP provides enhanced thermal management, making it suitable for automotive, industrial automation, and high-power control applications. With its high-speed switching capability, the ULN2065B-DIP ensures efficient operation in demanding environments.

• High Voltage and Current Handling: Supports 80V collector-emitter voltage (VCEO) and 1.5A maximum collector current (IC), ideal for driving high-power loads.
• Integrated Suppression Diodes: Provides built-in protection against voltage spikes from inductive loads, improving circuit reliability.
• Quad Darlington Configuration: Features four NPN Darlington transistors, designed for handling high-current applications.
• Logic-Compatible Inputs: Works with popular 5V logic families, ensuring easy interfacing with microcontrollers and digital circuits.
• High-Speed Switching: Optimized for fast response times, making it ideal for relay drivers, solenoids, and motor control applications.
• Wide Operating Temperature Range: Functions reliably between -20°C to +85°C, suitable for industrial, automotive, and automation systems.
