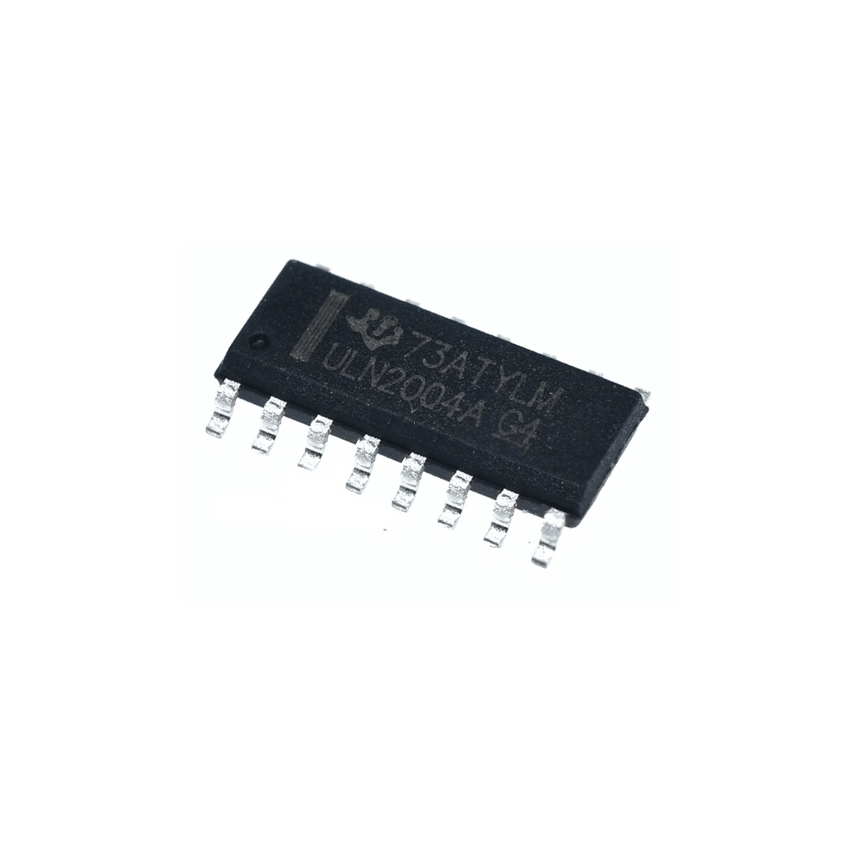

ULN2004A-SMD ,High Voltage High Current Darlington Transistor Array - 50V Maximum Collector-Emitter Voltage, 500mA Collector Current,SO-16

The ULN2004A-SMD is a versatile high-voltage, high-current Darlington transistor array designed for diverse applications such as relay drivers, LED displays, filament lamps, and more. With its robust 500mA collector current and up to 50V collector-emitter voltage, it offers reliable performance in demanding environments. The integrated output clamp diodes ensure protection against high-voltage spikes, making it compatible with popular logic types.

Key Features :

• High Voltage Capability: Supports a maximum collector-emitter voltage of 50V, ensuring suitability for high-voltage applications.
• High Current Output: Delivers a maximum collector current of 500mA per channel, enabling robust driving capabilities.
• Built-In Protection: Integrated clamp diodes provide enhanced protection for inductive loads.
• Logic Compatibility: Designed for use with TTL, CMOS, and PMOS logic families, ensuring seamless integration.
• Compact Package: SMD design for space-efficient and reliable PCB assembly.
• Eco-Friendly Compliance: Fully RoHS-compliant and halogen-free for environmentally responsible usage.
