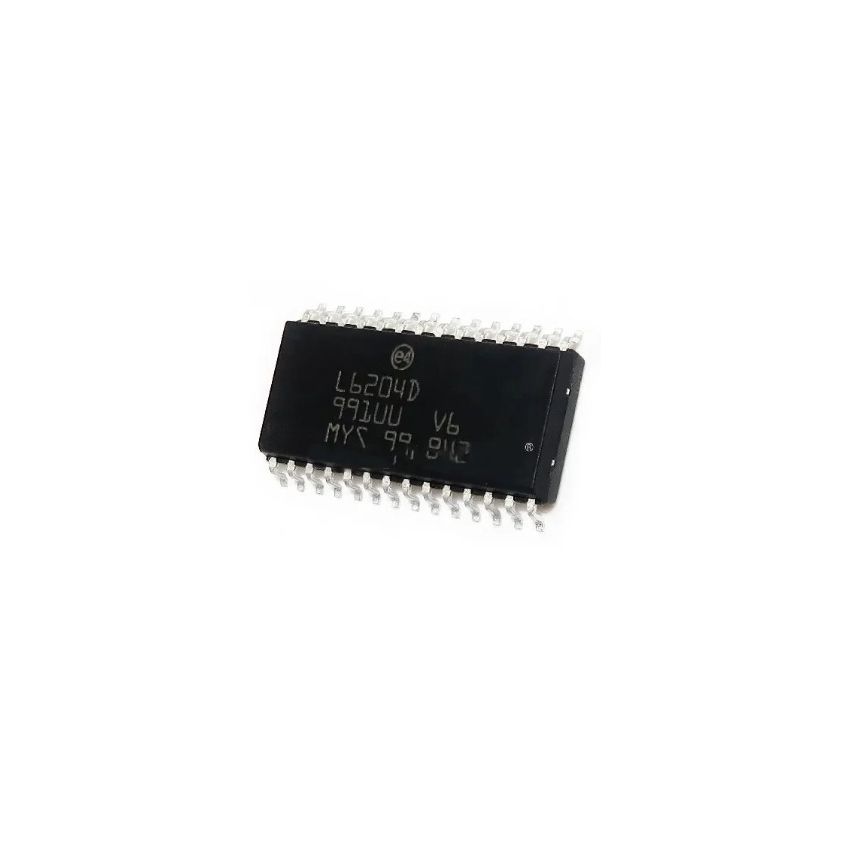

L6204D,DMOS Dual Full-Bridge Driver for Motor Control,SO-24

The L6204D is a high-performance DMOS dual full-bridge driver designed for motor control applications. With its compact SO-24 package, it offers efficient space utilization for surface-mount designs. This driver integrates advanced features such as thermal shutdown, cross-conduction protection, and a charge pump for reliable operation in demanding environments.

The **L6204D** supports a supply voltage range from 12V to 48V and provides continuous output currents up to 0.5A, with pulsed currents reaching 3A. It is ideal for controlling DC motors, stepper motors, and other inductive loads, making it a versatile solution for industrial and consumer applications.

• High Voltage Operation: Supports supply voltages up to 48V.
• High Efficiency: Features Multipower BCD technology with low RDS(on) of 1.2Ohm.
• Integrated Protection: Includes thermal shutdown and cross-conduction protection.
• Dual Full-Bridge Design: Ideal for driving DC and stepper motors.
• Compact SO-24 Package: Suitable for surface-mount applications.
• Wide Temperature Range: Operates reliably from -40C to 150C.
