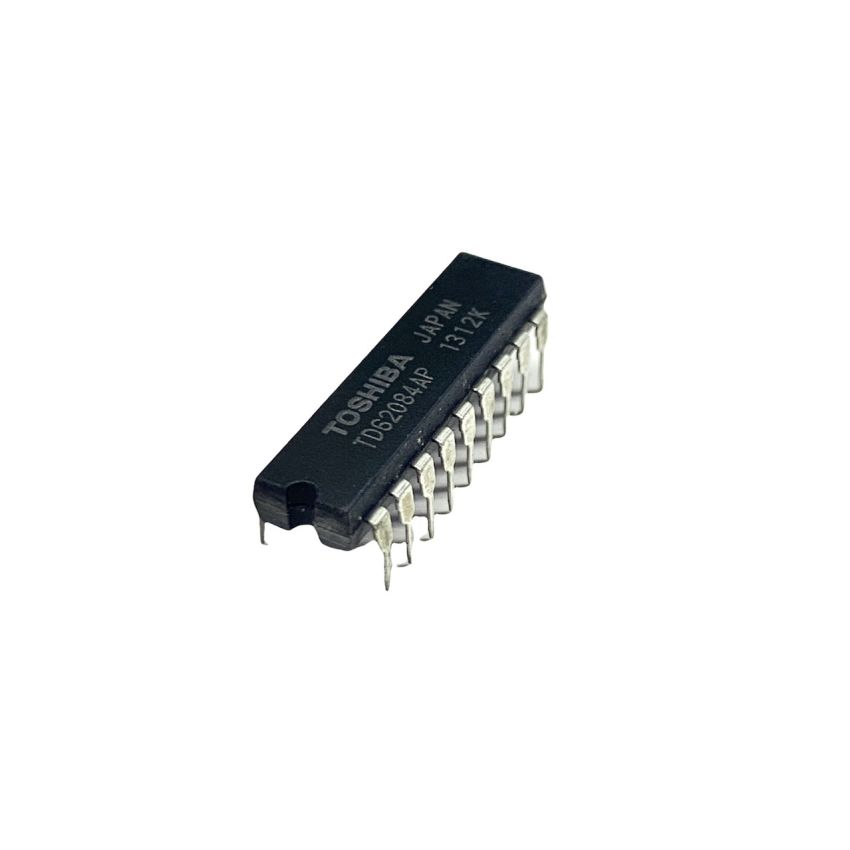

TD62084AP,Darlington Transistor Array IC,DIP-16

The TD62084AP is an 8-channel Darlington transistor array IC designed to drive high-current and high-voltage loads. Encased in a reliable DIP-16 package, this IC is equipped with built-in freewheeling diodes to protect against back electromotive force (EMF) from inductive loads. Its compact design and high performance make it suitable for a variety of applications, including industrial automation, consumer electronics, and motor control.

The IC supports collector-emitter voltages up to 50V and a maximum output current of 500mA per channel, providing robust performance for heavy loads. Designed with ease of use in mind, the TD62084AP-DIP integrates seamlessly into through-hole PCB designs, making it a preferred choice for prototyping and final production.

• Darlington Transistor Array: Features 8 channels of high-current, high-voltage Darlington pairs.
• High Current Capability: Supports output currents up to 500mA per channel.
• Integrated Freewheeling Diodes: Protects against back EMF from inductive loads, ensuring durability.
• Compact DIP-16 Package: Easy to integrate into standard through-hole designs.
• High Voltage Tolerance: Operates with collector-emitter voltages up to 50V, suitable for demanding applications.
• Wide Application Range: Ideal for driving relays, stepper motors, lamps, and LEDs.
