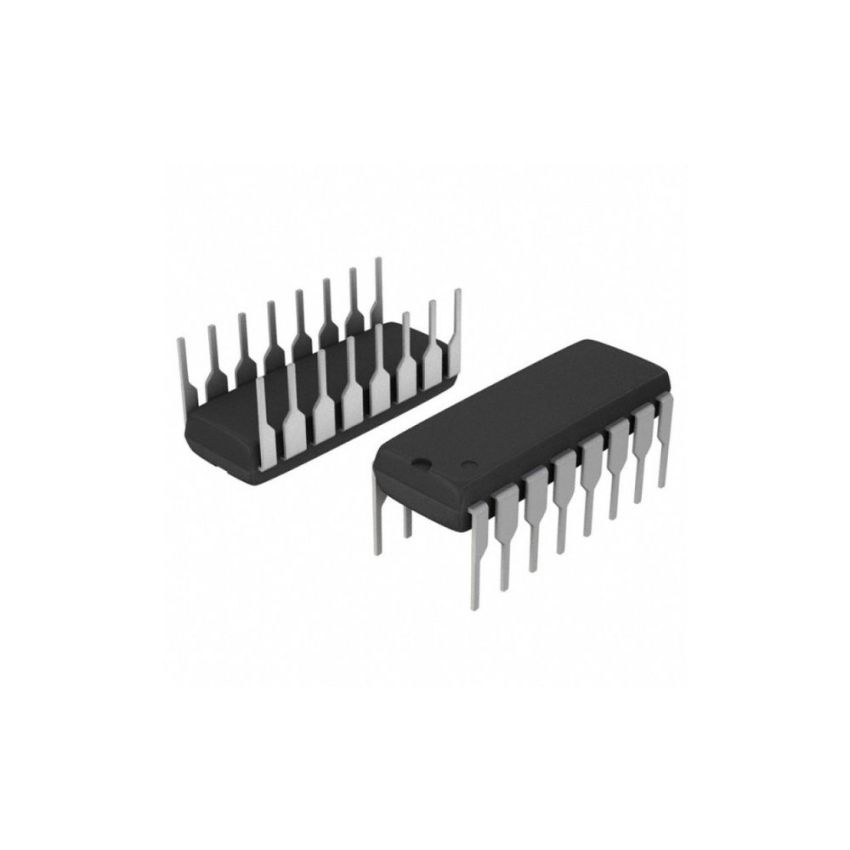

TD62502P, 7-Channel Darlington Sink Driver - 35V, 200mA, DIP-16 Package

TD62502P, 7-Channel Darlington Sink Driver - 35V, 200mA, DIP-16 Package

SKU
SCIx1597
Part Number
TD62502P
Brand:
Generic
Categories:
Semiconductors, Ics
Estimated Delivery: Lead Time 4-6 Weeks
JOD 15.00
Be the first to review this product
Pre-Order
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

The TD62502P is a 7-channel Darlington sink driver IC designed for efficient interfacing between logic families (TTL, CMOS, and PMOS) and high-power loads such as relays, lamps, and LED displays. Encased in a reliable DIP-16 package, it offers a high output current of 200mA per channel and a sustaining output voltage of 35V, making it suitable for driving inductive loads.

With integrated clamp diodes to suppress transient voltages, the TD62502P ensures durability and reliability in industrial and consumer electronIcs. Its wide input voltage compatibility and robust design make it ideal for various automation and control applications.


Key Features:

  • 7-channel Darlington sink driver for high-efficiency output control.
  • Output current capability of up to 200mA per channel.
  • High sustaining output voltage of 35V, designed for inductive loads.
  • Built-in clamp diodes for protection against inductive kickback.
  • Compatible with TTL and CMOS logic levels for seamless interfacing.
  • Packaged in a DIP-16 configuration for easy integration on standard PCBs.
More Information
Estimated Delivery Lead Time 4-6 Weeks
Package Type DIP-16
IC type Darlington Sink Driver
Mounting Style Through Hole
Function N/A
