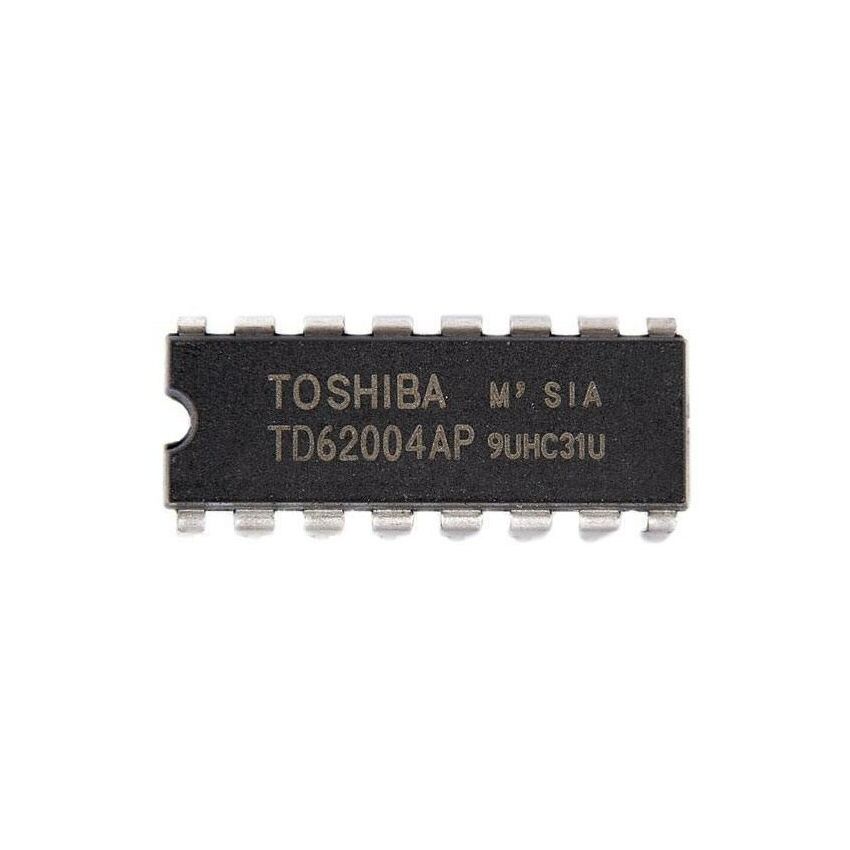

TD62004AP ,7-Channel Darlington Sink Driver - DIP-16, 50V, 500mA

The TD62004AP is a high-voltage, high-current Darlington driver IC featuring seven NPN Darlington pairs with clamp diodes for switching inductive loads. This versatile driver is suitable for a variety of applications, including relay drivers, hammer drivers, lamp drivers, and display (LED) drivers. With its wide voltage range and integral clamp diodes, the TD62004AP ensures robust operation, while the DIP-16 package facilitates easy integration into through-hole designs. This driver can handle up to 50V and provides a maximum output current of 500mA per channel.

Key Features :

• 7-channel Darlington sink driver for high-voltage, high-current applications.
• Capable of driving loads with output currents up to 500mA per channel.
• High sustaining output voltage of up to 50V ensures versatility for different power systems.
• Built-in clamp diodes protect against voltage spikes when switching inductive loads.
• Compact DIP-16 package suitable for through-hole mounting.
• Wide input compatibility with different types of logic circuits.
