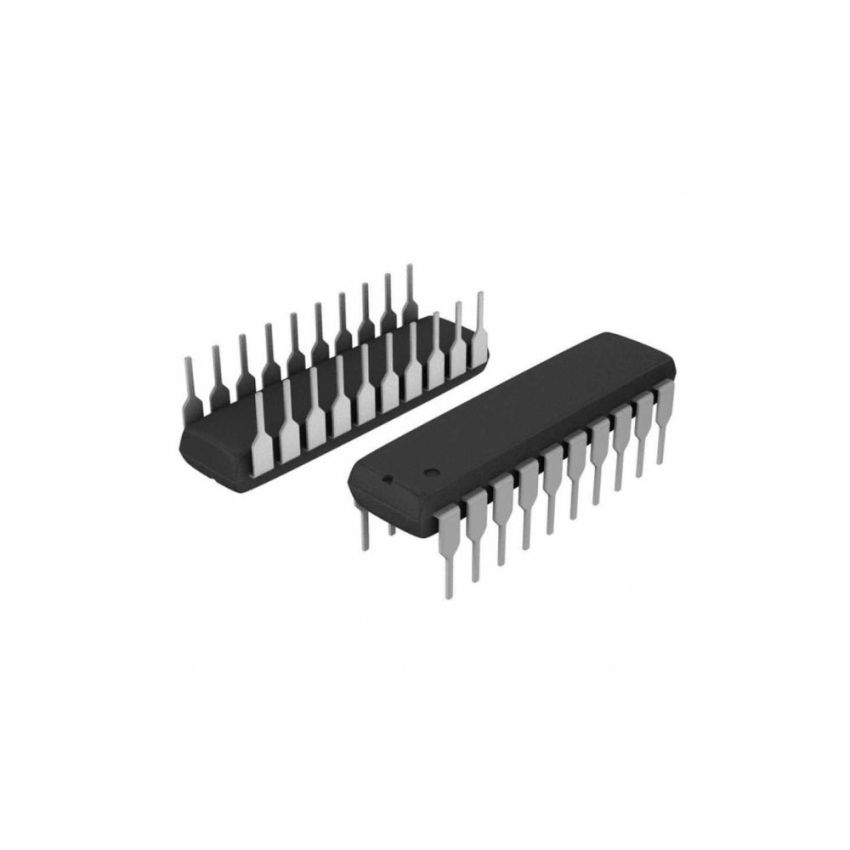

TD62386APG - DIP -20, Low-Level Input Active Darlington Sink Driver, 8-Channel, 500 mA

The TD62386APG is a high-performance, 8-channel low-level input active Darlington sink driver. Designed with an integrated circuit for switching inductive loads, it is compatible with TTL, 5V CMOS, and 5V microprocessor inputs. With an output current capability of 500 mA per channel, this driver is suitable for applications such as relay, hammer, lamp, and LED driving.

Key Features:

• 8-Channel Active Darlington Sink Driver – Designed for inductive and non-inductive load switching.
• Low-Level Input Voltage – Compatible with TTL and CMOS logic levels.
• Integrated Output Clamp Diodes – Provides added protection for switching applications.
• High Current Capability – Single output current up to 500 mA.
• Wide Operating Temperature Range – Designed to operate reliably from -40°C to +85°C.
• Compact DIP-20 Package – Suitable for dense circuit boards and simplified mounting.
