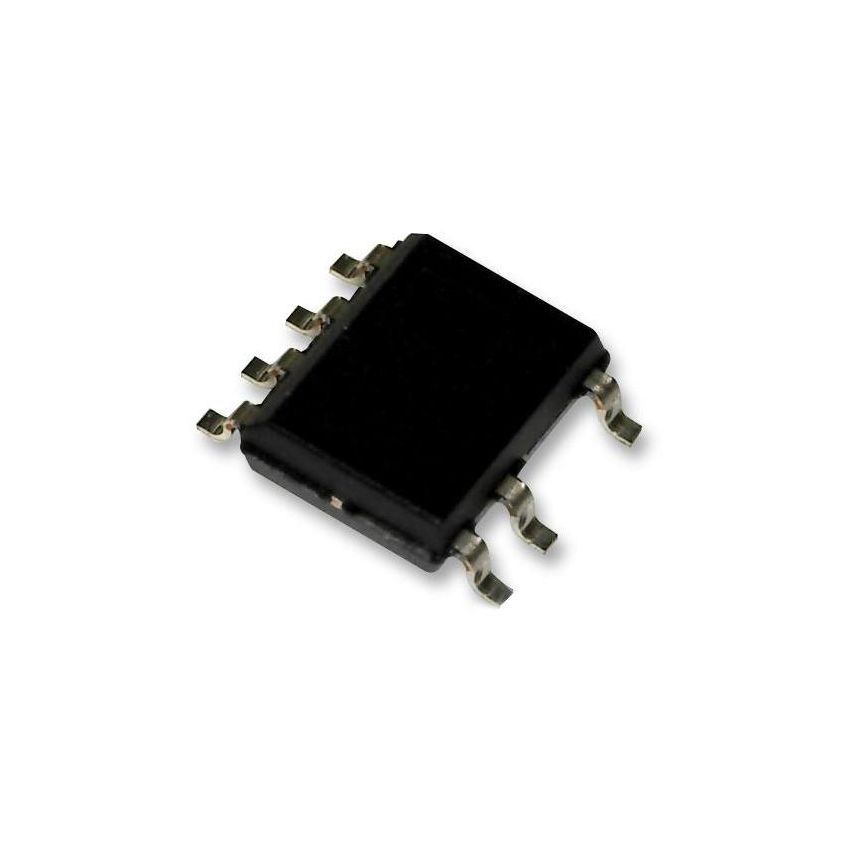

LNK364DN Power IC SOIC8 700V MOSFET Integrated Buck Converter Controller

The LNK364DN is a highly integrated monolithic switcher IC from the LinkSwitch-TN family by Power Integrations. Housed in a compact SOIC-8 SMD package, it combines a 700V power MOSFET, oscillator, control, and protection circuitry, allowing for the design of compact and low-component-count non-isolated buck, buck-boost, or flyback converters.

Key Features:

• Integrated 700V MOSFET and controller in SOIC-8
• Up to 3.1W output without heatsink (230VAC)
• No optocoupler or feedback winding required
• Low standby power (<50 mW at 230 VAC)
• Accurate current limit with thermal shutdown
• Frequency jittering for reduced EMI

Additional Specifications:

• Package Type: SOIC-8
• Supply Voltage: 85 – 265 VAC
• Current: 250 mA
• Type: Off-Line Switcher IC
