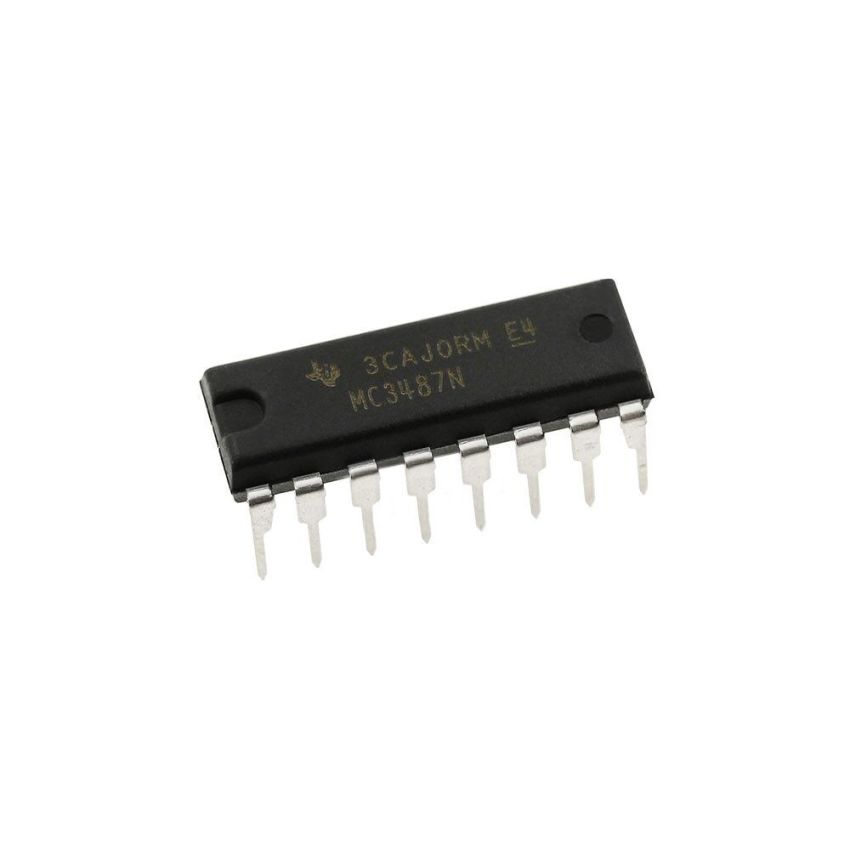

MC3487N-DIP Quadruple Differential Line Driver, 5V Supply, TTL Compatible Outputs

The MC3487N-DIP is a quadruple differential line driver designed to meet ANSI TIA/EIA-422-B and ITU V.11 recommendations. Operating from a single 5V supply, it features TTL-compatible inputs with fast transition times and high impedance outputs. The device provides 3-state outputs, making it ideal for applications where high-speed data transmission and low power consumption are required. The MC3487N-DIP offers reliable power-up and power-down protection, ensuring robust operation in diverse industrial environments.

Key Features :

• Quadruple Line Drivers: The device integrates four independent differential line drivers, making it suitable for high-density applications requiring multiple channels.
• TTL-Compatible Inputs: The inputs are compatible with TTL logic, allowing easy integration with various digital circuits.
• High Impedance Outputs: Ensures minimal power consumption and protection during power-up and power-down transitions.
• 3-State Outputs: Provides flexibility in driving the output, ideal for bus-oriented systems.
• Single 5V Supply: Simple power supply requirements, compatible with standard logic circuits.
• Meets ANSI TIA/EIA-422-B Standards: Compliant with critical standards, ensuring reliable performance in industrial automation and motor control systems.
