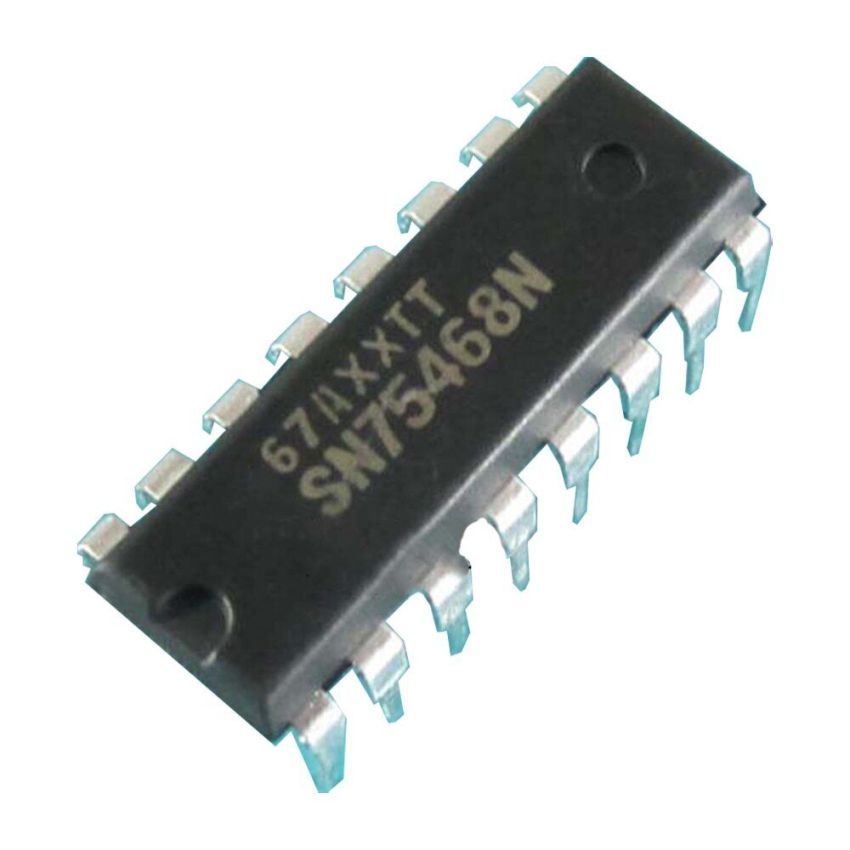

The SN75468N is a high-voltage, high-current Darlington transistor array designed for various switching applications. It integrates seven NPN Darlington pairs with output clamp diodes, enabling efficient and reliable control of inductive loads such as motors, solenoids, and relays. Each transistor pair can sink currents up to 500mA, providing strong output performance. This makes it suitable for relay drivers, lamp drivers, small motors, and other similar applications.
With a built-in series resistor, the SN75468N can be directly interfaced with TTL or CMOS systems, supporting supply voltages ranging from 5V to higher values. The device offers significant flexibility in design, ensuring it meets diverse circuit requirements. Additionally, the integrated diodes protect against kick-back voltages, ensuring long-lasting performance.
Operating within a wide temperature range of -40C to 105C, the SN75468N guarantees reliable operation under various environmental conditions. It is available in a standard 16-pin DIP package, facilitating easy integration into existing designs.
Key Features :- High Voltage Output: Capable of handling up to 100V, making it ideal for switching inductive loads such as motors, relays, and lamps.
- Integrated Darlington Transistors: Features seven high-gain NPN Darlington pairs, allowing for efficient current amplification.
- Output Clamp Diodes: Includes diodes for suppressing voltage spikes, protecting connected components from damage.
- Wide Input Compatibility: Suitable for TTL and CMOS logic inputs, providing flexible interfacing options.
- High Output Current Capability: Each channel can deliver up to 500mA, making it suitable for multiple applications.
- Robust and Reliable Design: Supports parallel channel operation for higher current demands and designed for robust performance.
