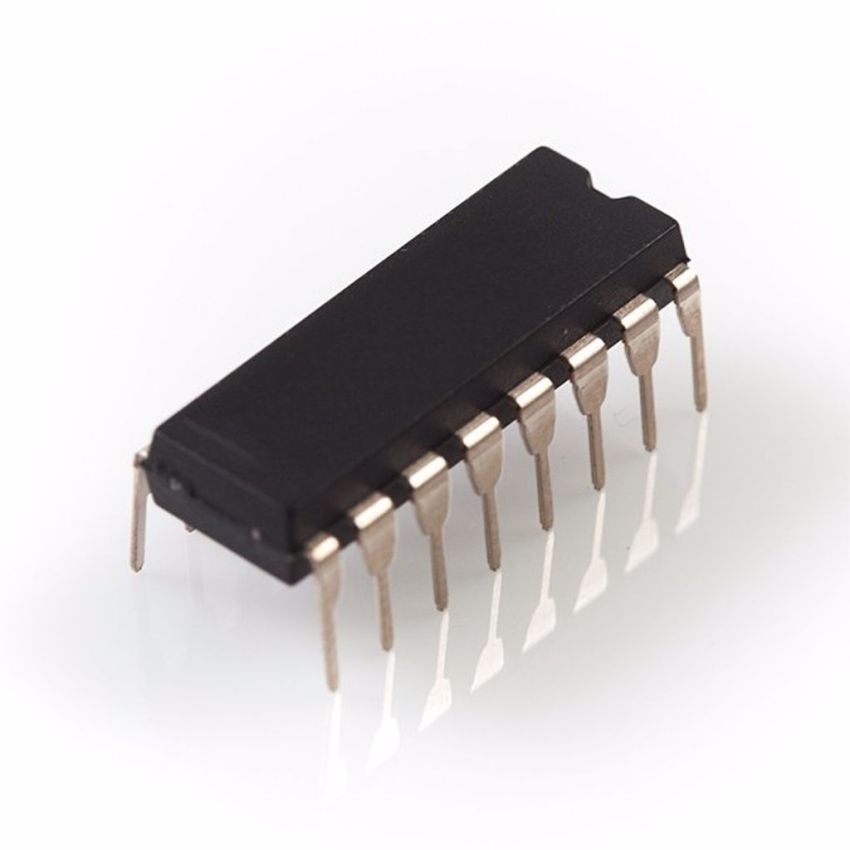

SN75115N, Dual Differential Line Receiver, 16-Pin DIP Package

The SN75115N is a dual differential line receiver designed to detect small differential signals amidst substantial common-mode noise. It provides TTL-compatible output signals based on the differential input voltage. The device features open-collector output configurations, permitting the wire-ANDing of similar TTL outputs or other SN75115 line receivers, facilitating logic level implementation without additional delay. Each receiver channel includes a strobe input, allowing for individual enabling or disabling, with disabled channels forcing the outputs to a high level.

• Dual Differential Receivers – Designed to sense small differential signals in the presence of large common-mode noise.
• TTL-Compatible Outputs – Provides output signals compatible with TTL logic levels.
• Open-Collector or Active Pull-Up Outputs – Offers flexibility in output configuration.
• Single 5V Supply Operation – Simplifies power requirements by operating from a single 5V supply.
• +/-15V Common-Mode Input Voltage Range – Allows for a wide range of input signal variations.
• Individual Channel Strobes – Enables or disables each receiver channel independently.
