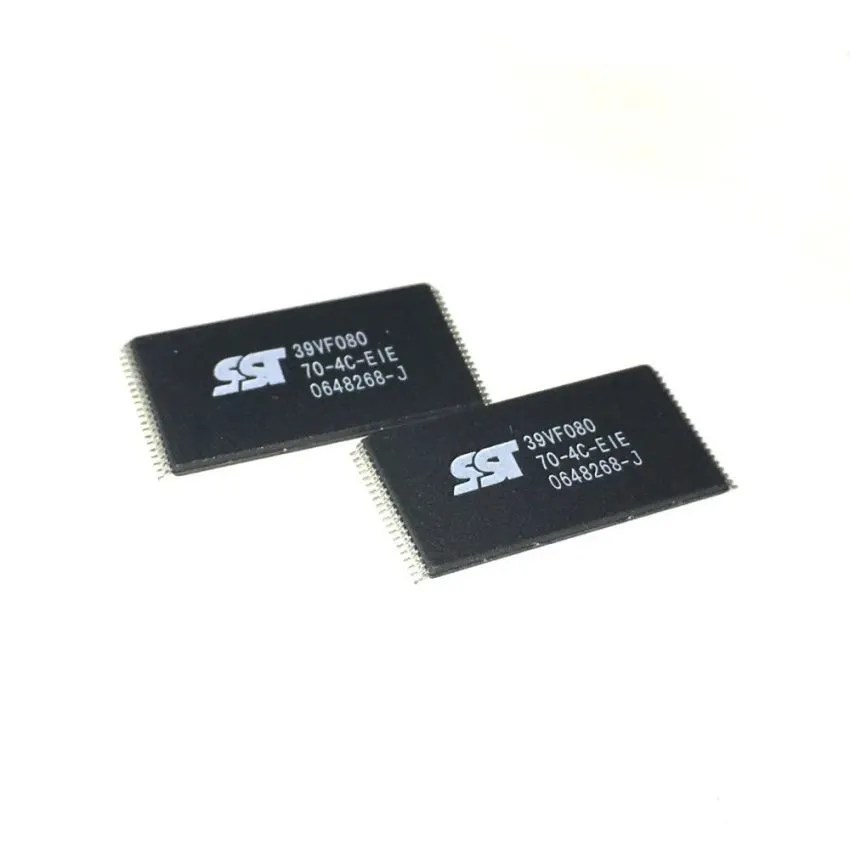

39VF080-SMD Microchip 8Mbit Flash Memory, 2.7V-3.6V, Parallel Interface, SMD Package

The Microchip 39VF080-SMD is an 8 Mbit (1M x 8) Multi-Purpose Flash (MPF) Memory device, built on high-performance CMOS SuperFlash technology. It provides fast read access times of 70 ns while operating efficiently on a low voltage supply of 2.7V to 3.6V, making it perfect for battery-operated and embedded applications. With high endurance of 100,000 erase/write cycles and data retention exceeding 100 years, this Flash memory ensures reliability in long-term applications. The device features uniform 4KByte sector and 64KByte block architecture, making it suitable for flexible memory management. The parallel interface enables compatibility with various microcontrollers, and the SMD package options (TSOP-40, TFBGA-48) ensure easy integration into compact designs. It is widely used in embedded systems, automotive applications, and industrial storage solutions that require non-volatile memory.

Key Features:

• High-Speed Read Access Time: 70 ns for fast data retrieval.
• Low Voltage Operation: Operates within a 2.7V to 3.6V supply voltage range.
• Low Power Consumption: Active current of 15mA and standby current of 4µA for efficient energy use.
• High Endurance: Supports up to 100,000 erase/write cycles.
• Extended Data Retention: Ensures data integrity for over 100 years.
• Flexible Erase Capability: Features uniform 4KByte sectors and 64KByte blocks.

Additional Specifications:

• Memory Type: Flash Memory
• Interface Type: Parallel
• Supply Voltage: 2.7V to 3.6V
• Memory Size: 8 Mbit (1M x 8)
