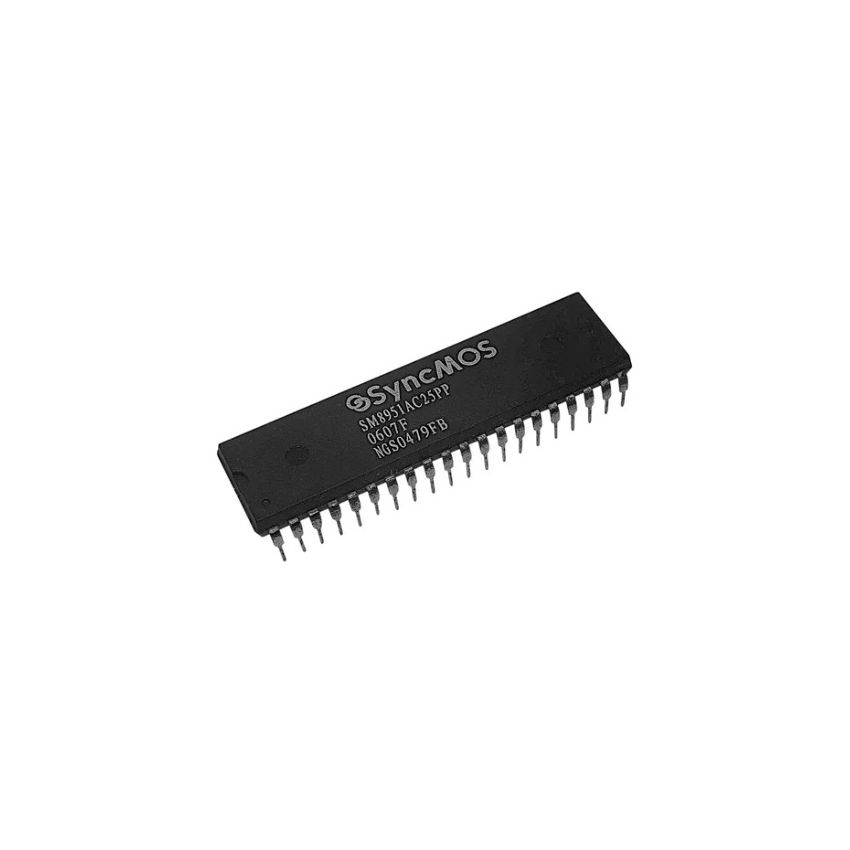

SM8951A, 8-Bit Microcontroller, DIP-40,

The SM8951A is a high-performance 8052-compatible 8-bit microcontroller, designed for use in embedded systems, industrial automation, and general-purpose control applications. It integrates 8KB of Flash ROM, 256 bytes of internal RAM, and a full-duplex UART, making it a versatile and cost-effective solution for microcontroller-based projects.

The microcontroller supports In-System Programming (ISP), allowing firmware updates without requiring external EEPROM programmers. With a maximum clock frequency of 40 MHz, the SM8951A delivers high-speed operation for time-sensitive applications.

Its DIP-40 package makes it ideal for through-hole PCB designs, ensuring ease of prototyping and production. It also includes three 16-bit timers/counters, multiple I/O lines, and interrupt sources, making it suitable for real-time control systems, data acquisition, and automation projects.

• 8052-Compatible 8-Bit Microcontroller: Fully compatible with the standard 8052 instruction set, allowing seamless integration into existing embedded systems.
• On-Chip Flash Memory: Includes 8KB of Flash ROM, supporting In-System Programming (ISP) for easy firmware updates.
• Integrated RAM and I/O Ports: Features 256 bytes of internal RAM and 32 general-purpose I/O lines, ensuring flexible system design.
• High-Speed Processing: Supports a maximum clock frequency of 40 MHz, allowing for fast execution of embedded applications.
• Multiple Timers and Interrupts: Provides three 16-bit timers/counters and 6 interrupt sources, enabling precise time-based operations.
• DIP-40 Package for Easy Prototyping: Through-hole mounting simplifies integration in PCB designs for rapid prototyping and production.
