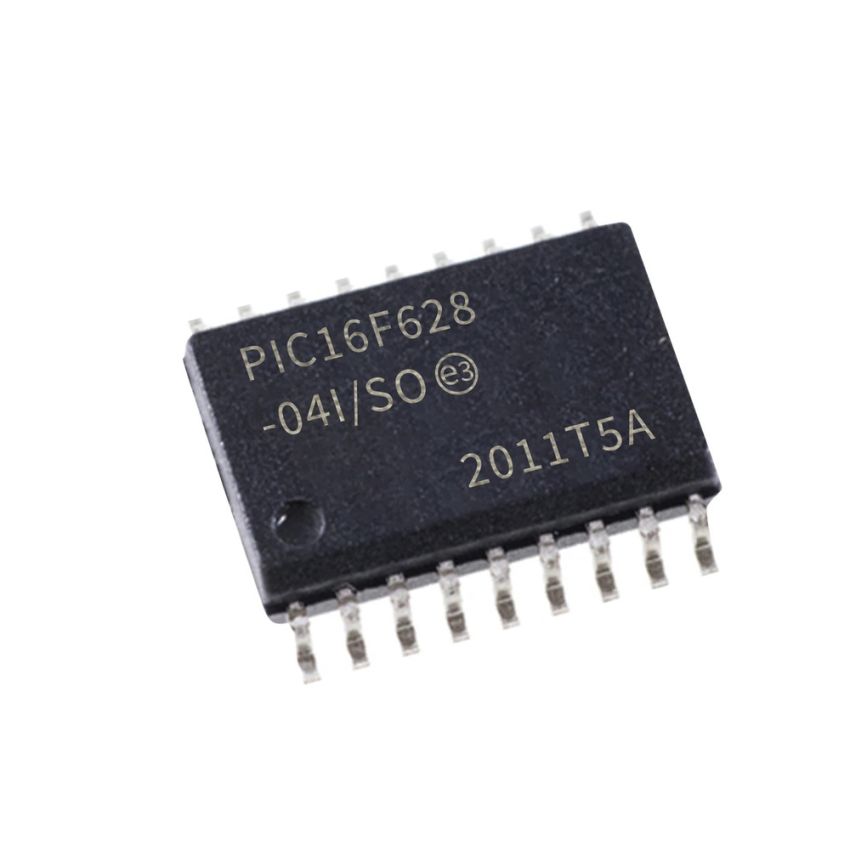

PIC16F628-04/SO, 8-Bit Flash Microcontroller, 18-Pin SOIC

The PIC16F628-04/SO is an 8-bit microcontroller from Microchip Technology's PIC® family, designed for a wide range of embedded applications. Operating at speeds up to 4 MHz, it delivers efficient performance for various control and automation tasks.

Equipped with 3.5 KB of Flash program memory and 224 bytes of RAM, the PIC16F628-04/SO offers sufficient storage for code and data. Its Universal Synchronous/Asynchronous Receiver/Transmitter (USART) enables seamless serial communication, while the integrated analog comparators and programmable voltage reference enhance analog signal processing capabilities.

The microcontroller includes multiple timer modules—Timer0 (8-bit), Timer1 (16-bit), and Timer2 (8-bit)—providing flexibility for various timing operations. The Capture/Compare/PWM (CCP) module further extends its application in control systems requiring precise timing and signal modulation.

Housed in an 18-pin SOIC package, the PIC16F628-04/SO is suitable for surface-mount applications, facilitating compact and efficient PCB designs.

• High-Performance RISC CPU: Executes most instructions in a single cycle, enhancing processing efficiency.
• 3.5 KB Flash Program Memory: Provides ample space for code storage.
• Universal Synchronous/Asynchronous Receiver/Transmitter (USART): Facilitates robust serial communication.
• Integrated Analog Comparators: Includes two analog comparators with a programmable on-chip voltage reference module.
• Multiple Timer Modules: Features Timer0 (8-bit), Timer1 (16-bit), and Timer2 (8-bit) for versatile timing operations.
• Capture/Compare/PWM (CCP) Module: Supports capture, compare, and PWM functionalities for control applications.
