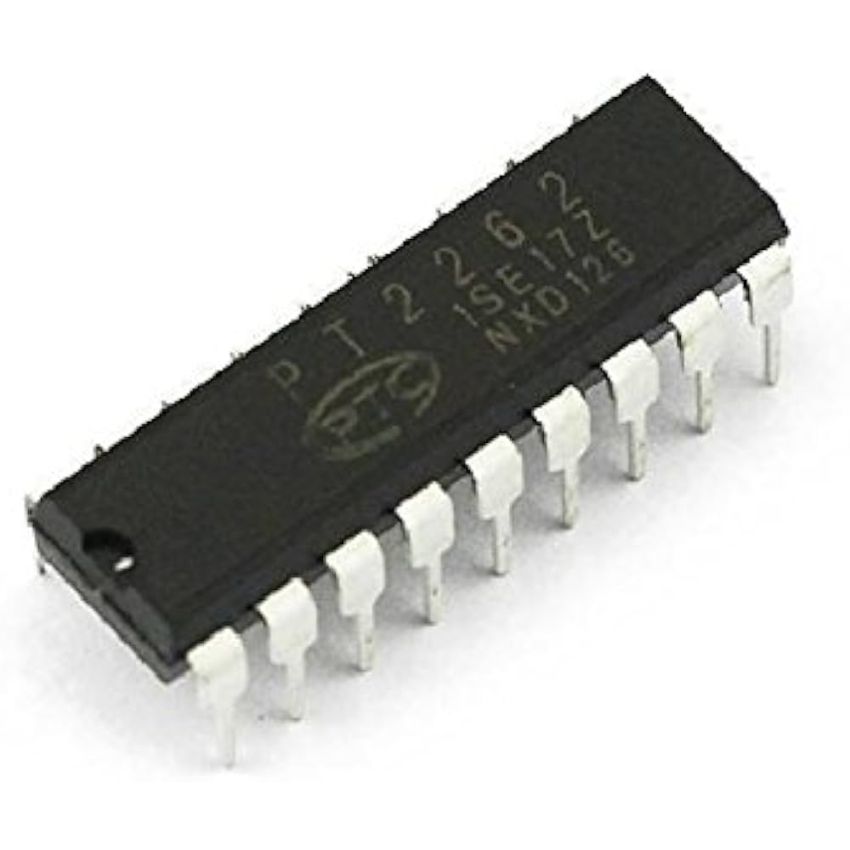

PT2262,Remote Control Encoder IC,DIP-18

The PT2262 is a versatile CMOS remote control encoder IC designed to pair with the PT2272 decoder. It encodes data and address pins into a serial coded waveform, suitable for RF or IR modulation. With up to 12 tri-state address pins and 6 data pins, it provides unparalleled flexibility and security for remote control systems.

Encased in a DIP-18 package, the PT2262 operates within a wide voltage range of 4V to 15V, making it ideal for use in car security, home automation, industrial controls, and remote control toys. Its high noise immunity and low power consumption ensure reliable performance in various environments.

• Remote Control Encoding: Encodes up to 12 tri-state address pins and 6 data pins for remote applications.
• High Security: Provides up to 531,441 address codes, drastically reducing code collisions.
• Wide Operating Voltage Range: Operates between 4V and 15V for diverse applications.
• Single Resistor Oscillator: Simplifies circuit design and reduces external components.
• Compact DIP-18 Package: Ideal for through-hole PCB designs.
• Low Power Consumption: Optimized for energy efficiency in remote control systems.
