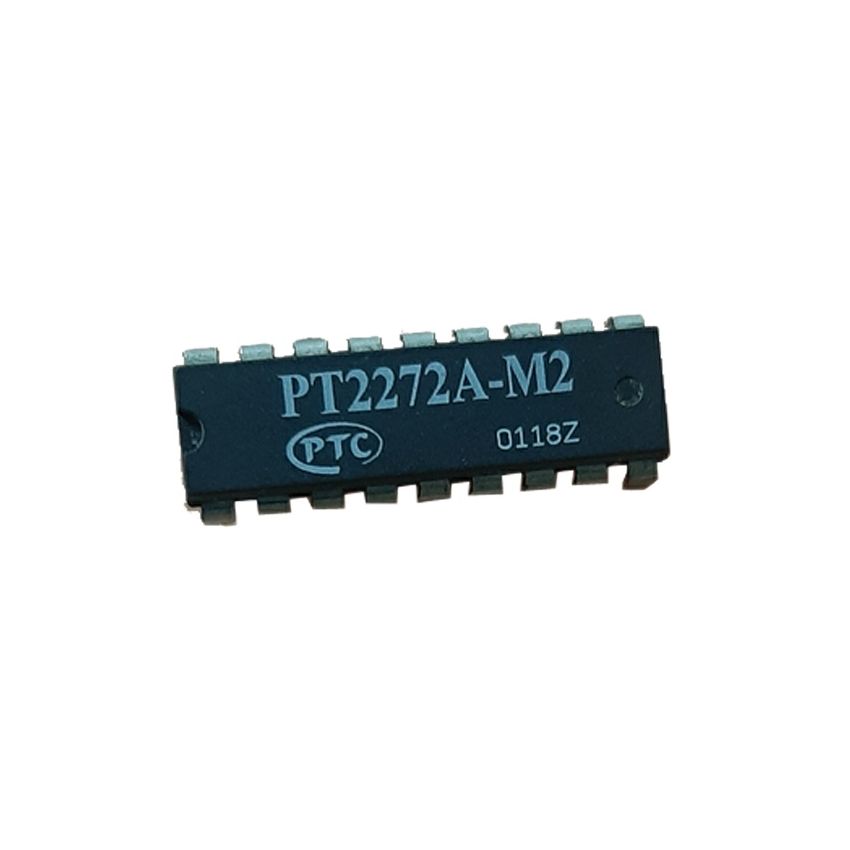

T2272-M2, 12-Bit Remote Control Decoder, DIP-18

The PT2272-M2 is a CMOS 12-bit remote control decoder, designed for wireless applications such as home automation, security systems, and remote controls. It pairs with the PT2262 encoder to receive encoded address and data signals via RF or infrared transmission. Operating within a voltage range of 4V to 15V, the PT2272-M2 ensures robust signal reception and high noise immunity. It includes an oscillator circuit, which requires only an external resistor to set the operating frequency. The Valid Transmission (VT) output pin goes high upon successful reception of matching address codes, confirming valid data transmission. With its DIP-18 package, the PT2272-M2 is ideal for remote control systems, alarm circuits, wireless industrial controls, and garage door openers.

• 12-Bit Remote Control Decoder – Decodes 8 address bits and 4 data bits, ideal for wireless remote control applications​PT2272.
• Wide Operating Voltage Range – Functions efficiently between 4V and 15V, ensuring compatibility with a range of power sources.
• High Noise Immunity – Designed with CMOS technology, providing reliable operation in noisy environments.
• Built-in Oscillator Circuit – Requires only an external resistor to set the operating frequency.
• Valid Transmission Indicator (VT) – Provides a high signal upon successful data reception.
• DIP-18 Package for Easy Prototyping – Through-hole package ensures seamless PCB integration and breadboarding.
