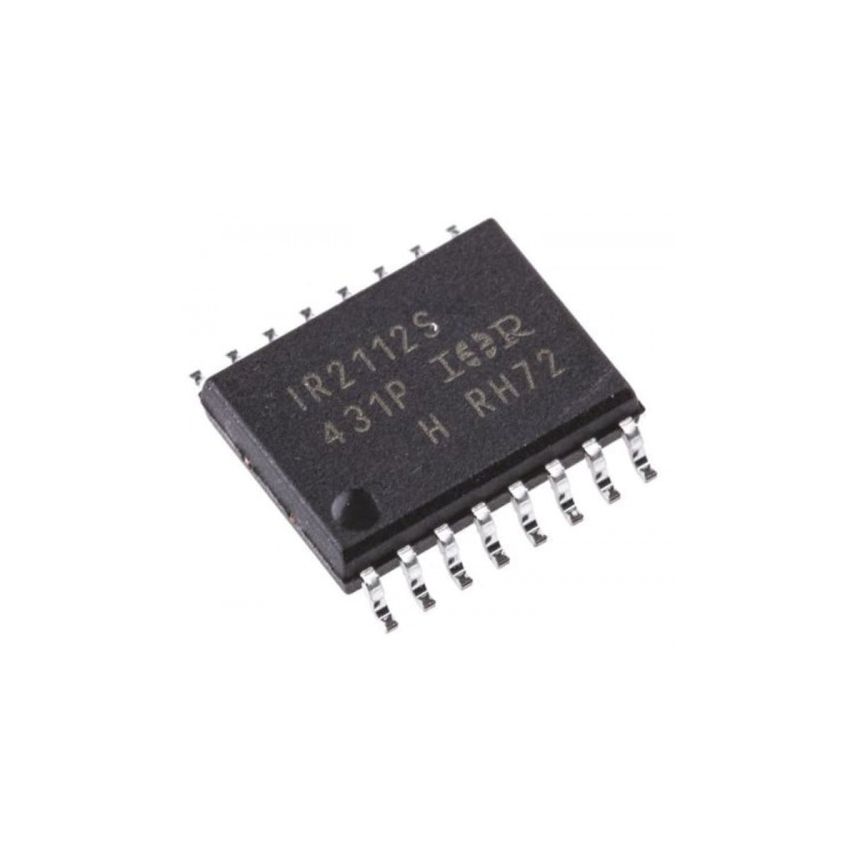

IR2112S ,High and Low Side Driver - 600V, 16-lead SOIC

Skip to the beginning of the images gallery

IR2112S ,High and Low Side Driver - 600V, 16-lead SOIC

SKU

SCIx1320

Part Number

IR2112S

Brand:

Categories:

JOD 3.71

Be the first to review this product

Pre-Order

Estimated Delivery: 2 - 3 Weeks

Add to Wish List

Guarantee safe & secure checkout

Description

The IR2112S is a high voltage, high-speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Operating with a floating channel up to 600V, the IR2112S supports bootstrap operation, providing a compact and efficient solution for driving power devices in high-frequency applications.

The device has a logic input voltage range of 3.3V to 20V, ensuring compatibility with various logic standards. Its SOIC-16 package makes it suitable for surface mounting in space-constrained designs.

Key Features :

Floating channel for bootstrap operation up to 600V.
High voltage tolerance, dV/dt immune.
Independent high/low side channels with 200mA/420mA output current.
3.3V to 20V logic input range, CMOS Schmitt-triggered.
125ns turn-on delay, 105ns turn-off delay.
Available in a 16-lead SOIC wide-body package for surface mounting.

Product Information

More Information
Estimated Delivery	2 - 3 Weeks
Package Type	SOIC-16
Type	High, Low Side MOSFET/IGBT Driver
IC type	N/A
Function	N/A
Current	200mA High Side, 420mA Low Side
