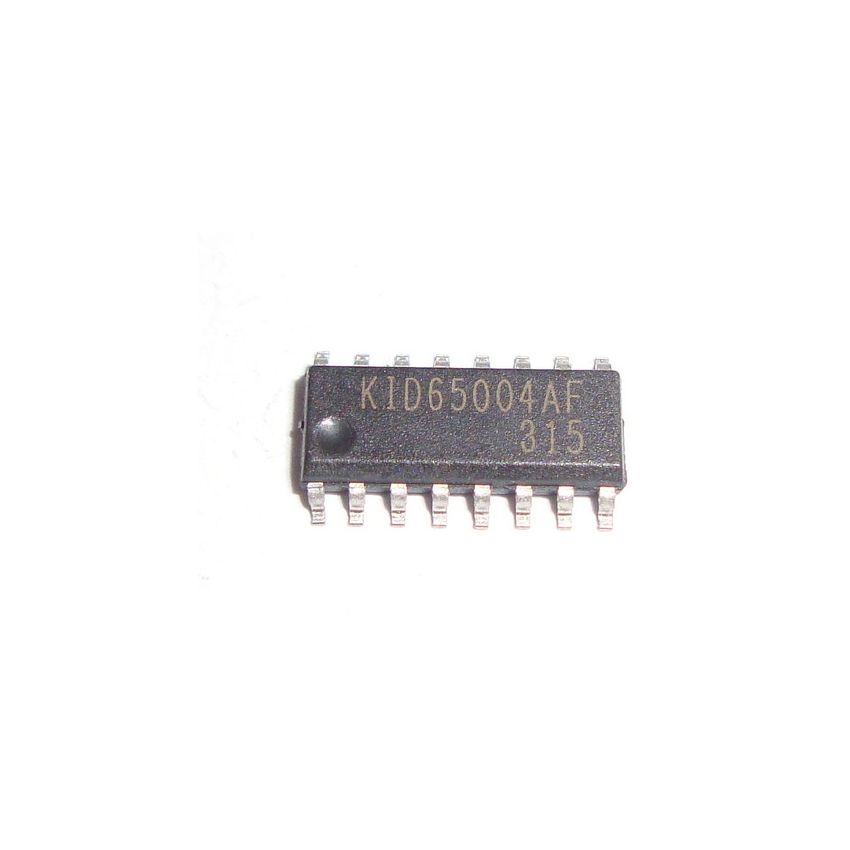

KID65004AF,7-Circuit Darlington Transistor Array,SMD,50V,500mA/Channel,SOP-16

The KID65004AF is a high-voltage, high-current Darlington transistor array that integrates seven NPN Darlington pairs in a single surface-mount SOP-16 package. This versatile component is designed for driving a variety of inductive loads, including relays, motors, and LED displays. Each output channel is capable of handling up to 500mA of current, with a maximum output voltage of 50V, providing robust performance across a range of applications.

The KID65004AF also includes built-in clamp diodes for each output, protecting against inductive kickback and enhancing the durability of the connected components. Its logic-compatible inputs allow for easy interfacing with TTL, CMOS, and other logic families, making it ideal for integration into existing systems. Whether used for industrial automation, consumer electronics, or automotive systems, the KID65004AF offers reliable switching performance in a compact SMD form factor.

• 7-Circuit Darlington Array: Features seven NPN Darlington transistor pairs in a single package, suitable for multiple switching tasks.
• High Voltage Handling: Supports up to 50V output voltage, ideal for driving inductive loads.
• Integrated Clamp Diodes: Built-in diodes protect against voltage spikes, ensuring reliable performance.
• Logic-Compatible Inputs: Compatible with various types of logic signals, facilitating easy integration.
• Surface-Mount Design (SMD): Compact SOP-16 package for efficient space utilization on PCBs.
• High Current Capability: Each channel can handle up to 500mA, making it versatile for different applications.
