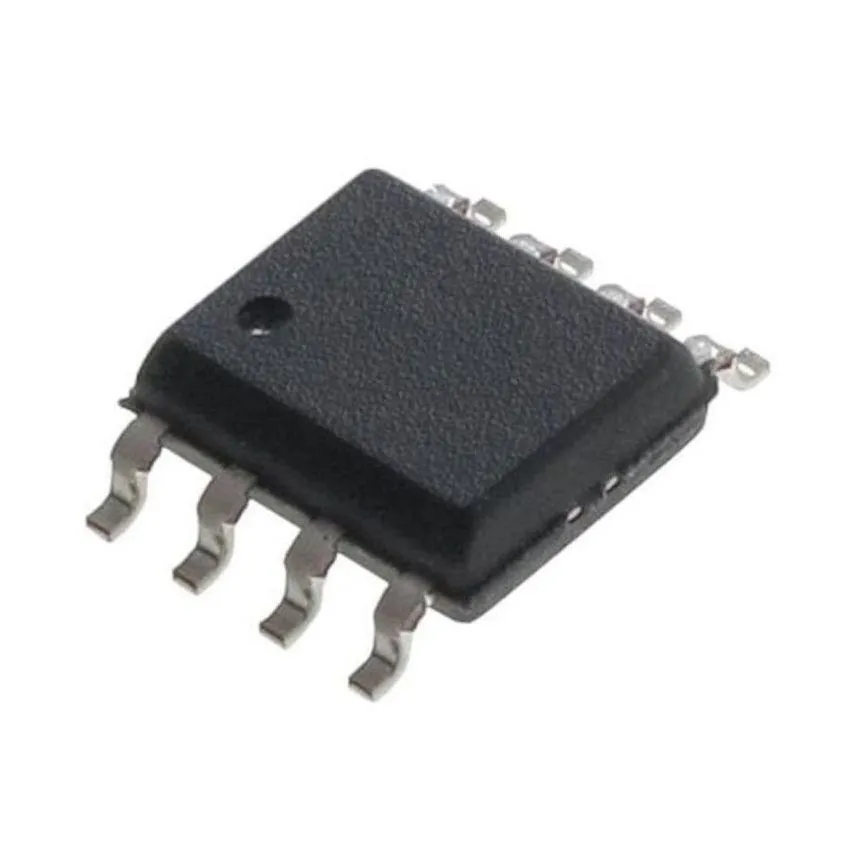

93C86C1 EEPROM IC 16Kbit Serial Microwire SOP8 2MHz Operating Frequency

The 93C86C1 is a high-performance serial Electrically Erasable Programmable Read-Only Memory (EEPROM) with Microwire bus interface. It offers 16Kbits of memory organized as either 2K x 8 or 1K x 16 and is commonly used in applications requiring non-volatile storage with fast read/write capability and reliable endurance. Designed for a wide operating voltage range of 2.5V to 5.5V, this device can achieve a clock frequency up to 2 MHz, making it suitable for embedded systems and low-power microcontroller applications.

Key Features:

• 16Kbit (2K x 8 or 1K x 16) organization
• 2 MHz maximum clock frequency
• Wide voltage operation from 2.5V to 5.5V
• 1 million write/erase cycles
• 200 years data retention
• Byte and Word write modes supported

Additional Specifications:

• Memory Type: EEPROM
• Interface Type: Microwire
• Supply Voltage: 2.5V – 5.5V
• Memory Size: 16Kbit
