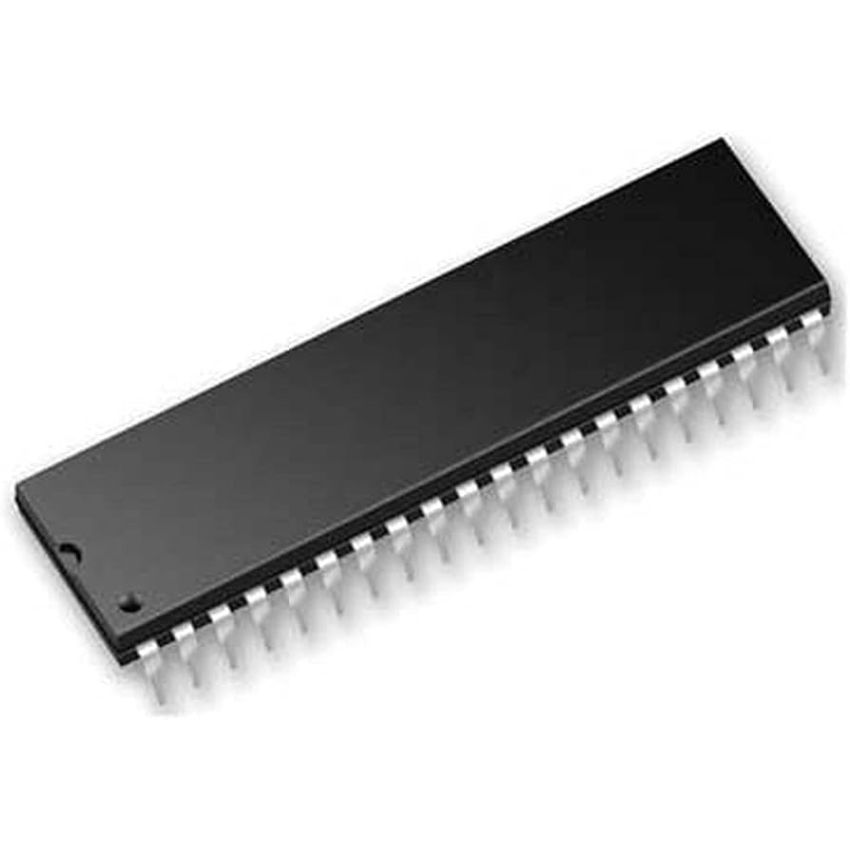

ICL7116CPL ,Digital Voltmeter IC - DIP Package, LCD Direct Drive, for Accurate Voltage Measurements

The ICL7116CPL is a high-performance 3(1/2) digit analog-to-digital converter designed for use with liquid crystal displays (LCDs). It utilizes a dual-slope conversion technique that automatically rejects noise and interference, making it suitable for applications requiring precise and stable measurements, such as digital panel meters. This IC features a unique display hold function, allowing indefinite display of the current reading.

With high input impedance differential inputs and low noise design, the ICL7116CPL provides reliable performance for measuring voltage, resistance, temperature, and other analog parameters. It operates over a temperature range of 0C to +70C and is housed in a 40-lead plastic DIP package for easy through-hole mounting. The IC also includes features like zero reading, low power consumption, and clock and reference on-chip for improved integration in design applications.

• 3½ Digit A/D Conversion: Provides precise measurement for digital panel meters and other analog data monitoring applications.
• Display Hold Function: Allows indefinite holding of a displayed reading, useful for stable observation in fluctuating environments.
• High Input Impedance Differential Inputs: Ensures minimal interference and maximum signal integrity for accurate readings.
• Low Noise Performance: Enhanced analog-to-digital conversion with minimal noise, making it suitable for low-level signal measurements.
• Integrated Clock and Reference: On-chip clock and reference voltage source simplifies design and reduces the need for external components.
• Wide Range of Applications: Supports measurement of voltage, resistance, current, temperature, speed, and more, making it versatile for various digital panel meter applications.
