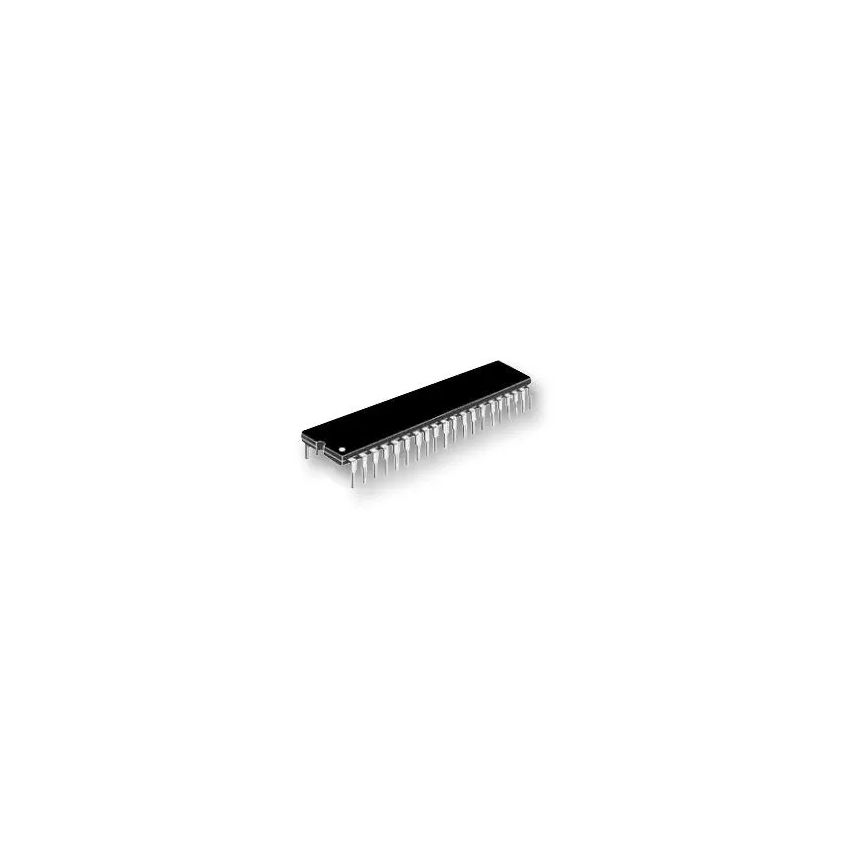

ICL7109CPL ADC Converter IC DIP40 12Bit Dual Slope Parallel Output

The ICL7109CPL is a high-performance 12-bit analog-to-digital converter (ADC) developed using the dual-slope integration method for superior noise rejection and precision in measurement systems. Housed in a DIP-40 package, this converter is particularly suited for interfacing with microprocessors in digital voltmeter, data acquisition, and industrial monitoring applications.

Key Features:

• 12-bit resolution ADC with true differential input
• Dual-slope integrating conversion method for accuracy
• TTL-compatible 3-state parallel binary output
• Internal oscillator supports 60Hz/50Hz noise rejection
• Up to 30 conversions per second
• DIP-40 through-hole package for easy integration

Additional Specifications:

• Package Type: DIP-40
• Type: Dual-Slope Analog-to-Digital Converter
• Voltage Supply: ±5V
• Bits Resolution: 12-bit
• Interface: Parallel 3-state binary output
