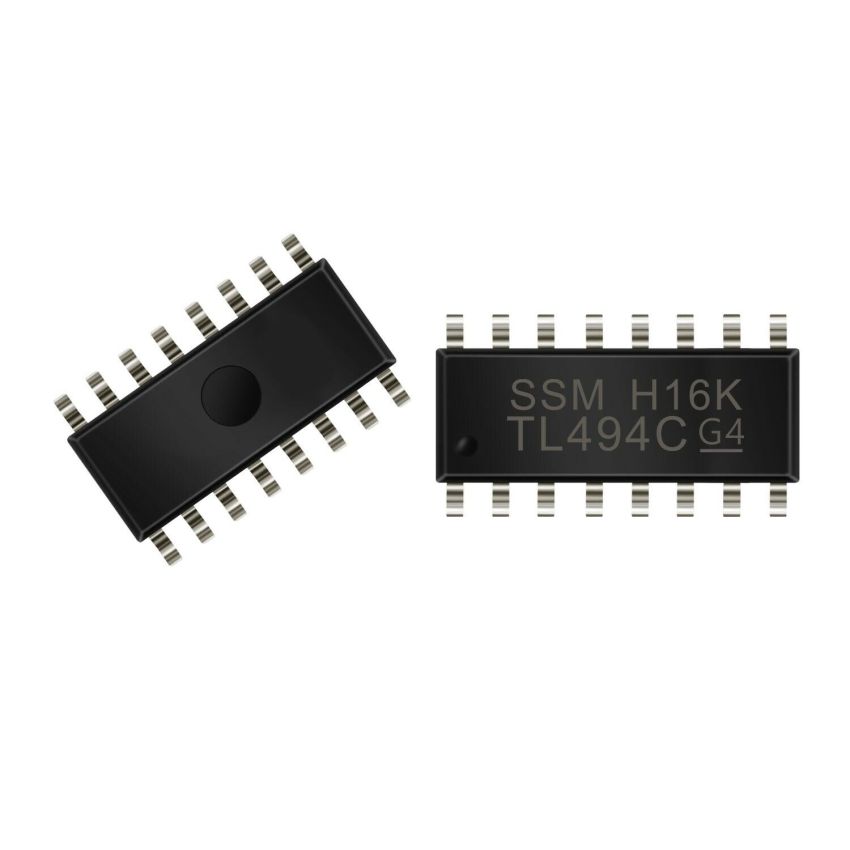

TL494C,Pulse Width Modulation Control Circuit,SOIC-16,SMD

The TL494C-SMD is a high-efficiency pulse width modulation (PWM) control circuit designed primarily for switch-mode power supply applications. It integrates complete PWM control functionality into a single device, reducing the need for external components while offering precise power regulation. The TL494C includes an on-chip oscillator that supports both master and slave operation, simplifying complex power supply designs.

This controller features an adjustable deadtime control, along with built-in error amplifiers and a 5.0V reference, providing the flexibility and accuracy required for high-performance power supply systems. It supports push-pull and single-ended output configurations, offering designers the ability to tailor the device to their specific needs. Packaged in a SOIC-16 form factor, the TL494C is ideal for space-constrained, surface-mount applications in consumer electronics, automotive, and industrial systems.

• Complete PWM Control: Offers fully integrated pulse width modulation (PWM) control circuitry for efficient power supply management.
• Built-in Oscillator: Features an on-chip oscillator for master or slave operation, programmable with external components.
• On-Chip 5V Reference: Provides an internal 5V reference for precision control.
• Push-Pull or Single-Ended Operation: Supports both push-pull and single-ended output control.
• Adjustable Deadtime Control: Enables precise control over output deadtime for optimized performance.
• Compact SOIC-16 Package: Ideal for surface-mount designs, offering efficient space utilization.
