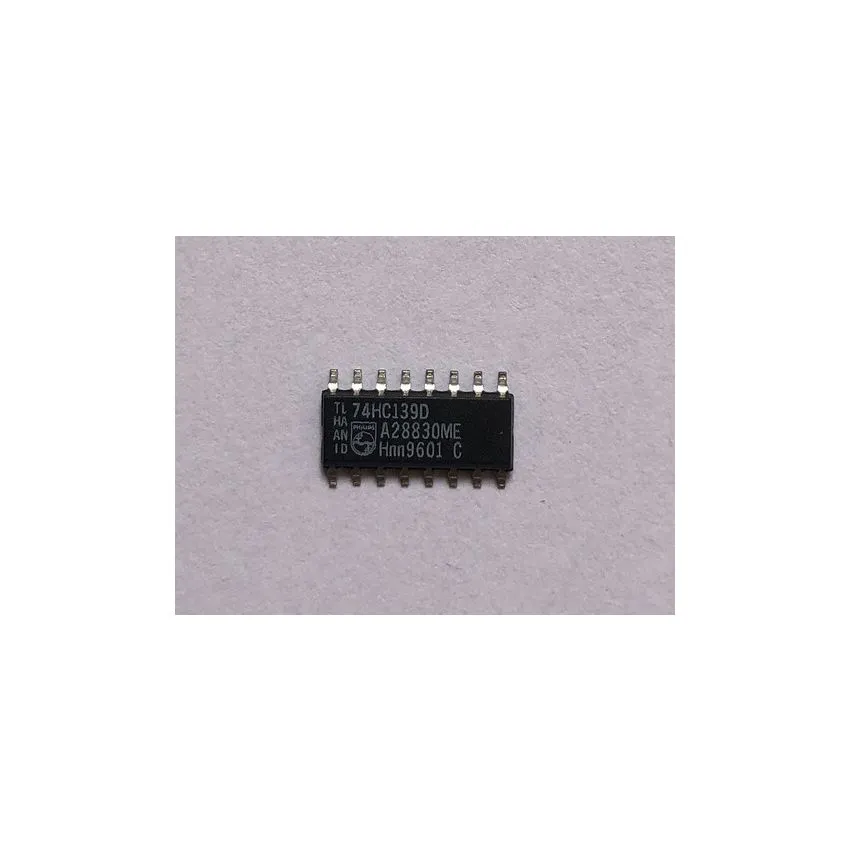

74HC139D,Dual 2-to-4 Line Decoder/Demultiplexer,SOIC-16

The 74HC139D is a high-speed CMOS dual 2-to-4 line decoder/demultiplexer designed for efficient data routing and memory decoding. Each decoder operates independently, converting 2 binary inputs into 4 mutually exclusive active LOW outputs. The integrated enable inputs allow for greater control and flexibility in logic designs.

Encased in a compact SOIC-16 package, the 74HC139D supports a supply voltage range of 2V to 6V, ensuring compatibility with both CMOS and TTL logic families. Its low power consumption and high-speed performance make it an ideal choice for digital systems requiring reliable and efficient data decoding or routing.

• Dual Independent Decoders: Each decoder converts 2 binary inputs into 4 mutually exclusive outputs.
• Active LOW Outputs: Simplifies cascading and integration into logic circuits.
• Wide Voltage Range: Operates efficiently from 2V to 6V, compatible with CMOS and TTL logic levels.
• Compact SOIC-16 Package: Ideal for surface-mount PCB designs.
• High-Speed Operation: Ensures fast response times for memory decoding and data-routing applications.
• Low Power Consumption: Optimized for energy efficiency in digital systems.
