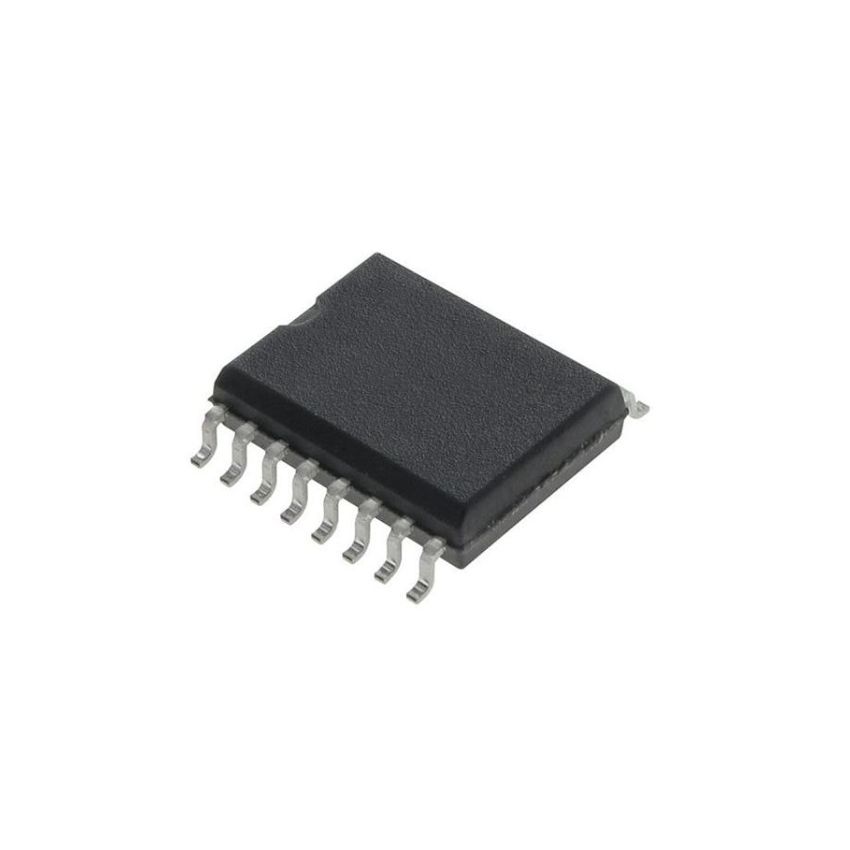

L6566B,High-Efficiency Multi-Mode Controller for SMPS,SOIC-16

The L6566B-SMD is a high-performance multi-mode power supply controller designed for Switch-Mode Power Supplies (SMPS) and offline flyback converters. It provides a versatile and energy-efficient solution for regulating power in applications ranging from industrial equipment to consumer electronics.

Equipped with advanced protection mechanisms, including overvoltage, undervoltage, and thermal shutdown, the L6566B ensures safe and reliable operation. Its soft-start functionality reduces stress on components during startup, and its compact SOIC-16 package is ideal for space-constrained designs. With its ability to operate efficiently across a wide range of load conditions, the L6566B is a robust choice for modern power management needs.

• High-Efficiency Multi-Mode Controller: Optimized for SMPS and offline flyback converters with energy-saving features.
• Wide Supply Voltage Range: Operates efficiently from 5V to 24V, supporting diverse power supply designs.
• Integrated Protections: Features overvoltage, undervoltage, overcurrent, and thermal protection for enhanced safety.
• Soft-Start Functionality: Minimizes inrush current and stress on components during startup.
• Compact SMD SOIC-16 Package: Designed for surface-mount integration, saving space in compact PCB layouts.
• Supports Multi-Mode Operation: Enhances performance across various load conditions, reducing energy consumption.
