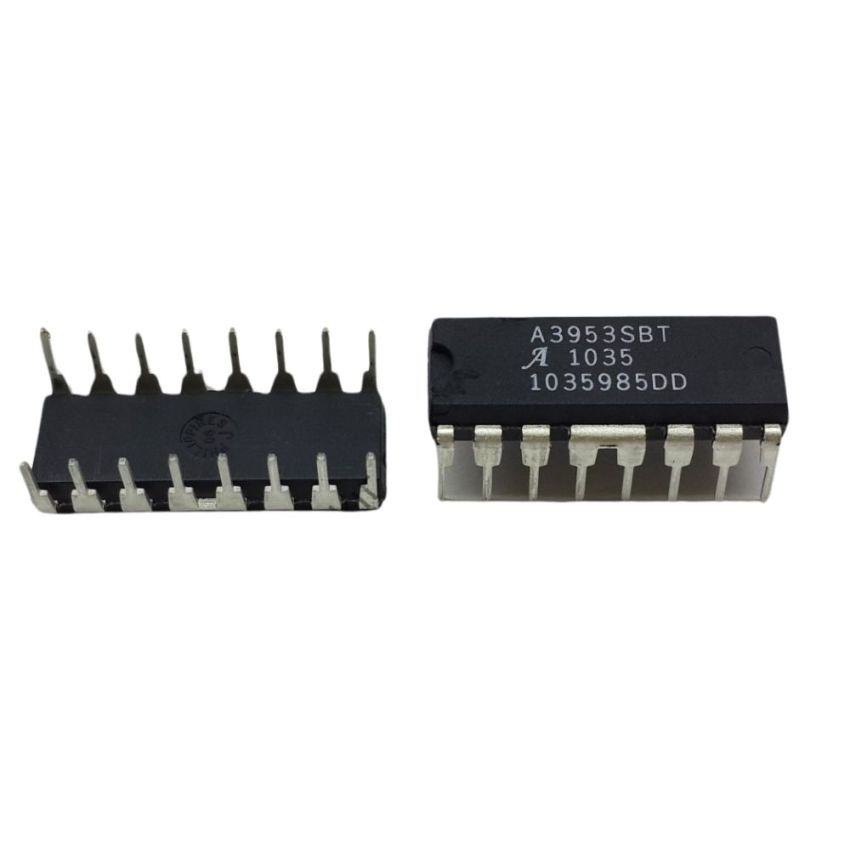

A3953SB-T,Full-Bridge PWM Motor Driver,DIP

SKU
SCIx0886
Part Number
A3953SBT
Brand:
Categories:
Delivery in 2-5 Weeks.
Pre-Order
Add to Wish List

Guarantee safe & secure checkout

The A3953SB-T is a high-performance full-bridge PWM motor driver IC designed to control DC motors, inductive loads, and other motion control applications. With bidirectional current control and continuous output currents up to ±1.3A, this IC provides exceptional flexibility for motorized systems. Its compact 16-pin DIP package ensures ease of integration into standard PCB layouts.

Operating within a wide voltage range of up to 50V for load and 3V to 5.5V for supply, the A3953SB-T is highly adaptable to various power systems. Built-in features like over-temperature shutdown and internal current sensing add safety and reliability to your designs. Ideal for use in robotIcs, automotive systems, and industrial applications, the A3953SB-T ensures precise and efficient motor control.


Key Features:
  • High Efficiency: Integrated full-bridge PWM driver for precise motor control.
  • Compact Design: 16-pin DIP package for easy installation and minimal PCB footprint.
  • Wide Voltage Range: Supports up to 50V load voltage for versatile motor applications.
  • Bidirectional Control: Enables forward and reverse motor operation with current sensing.
  • Thermal Protection: Includes over-temperature shutdown for enhanced safety and durability.
  • Allegro Quality: Manufactured by Allegro MicroSystems for reliable and consistent performance.
More Information
Package Type DIP-16
IC type Full-Bridge PWM Motor Driver
Mounting Style Through Hole
Function N/A
