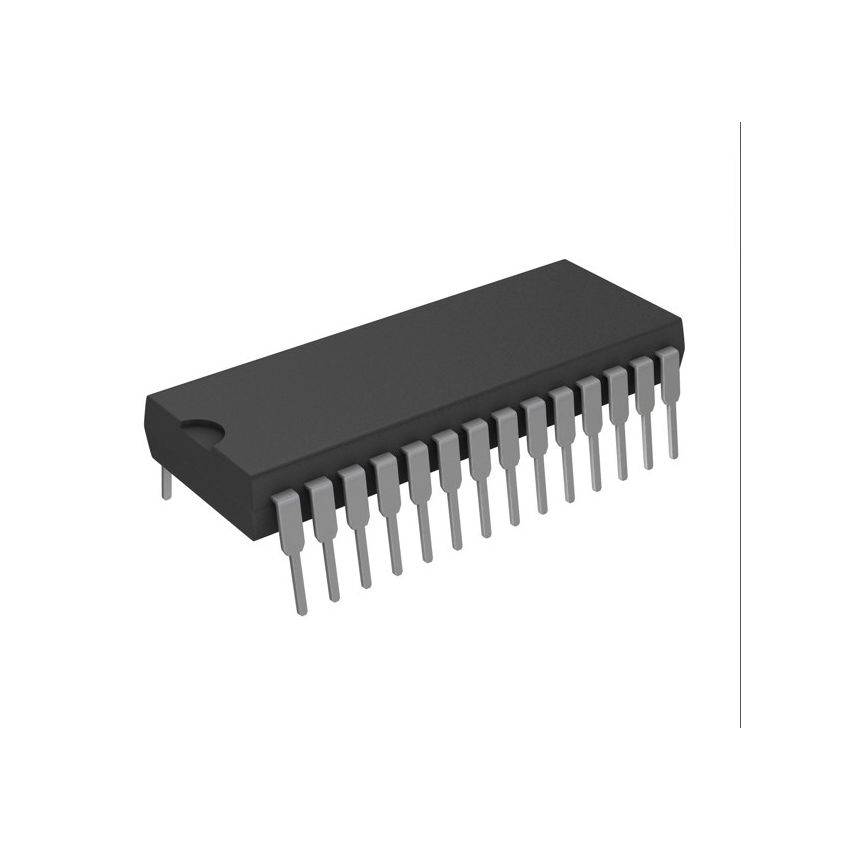

DS1242-DIP, Nonvolatile Controller with Real-Time Clock- 28-Pin DIP Package, Ideal for Data Integrity and Timekeeping in Embedded Systems

The DS1242 is a highly reliable non-volatile SRAM with an integrated real-time phantom clock, designed by Dallas Semiconductor (Maxim Integrated). This component offers 64K bytes of non-volatile static RAM (NV SRAM) that retains data even when power is lost, thanks to an automatic switch to a backup power supply.

The integrated phantom clock function provides complete timekeeping capabilities, including seconds, minutes, hours, day, date, month, and year, with leap-year compensation up to 2100. The DS1242 is housed in a 28-pin DIP package and is suitable for through-hole mounting in various applications requiring dependable data retention and accurate timekeeping, such as industrial controls, data logging systems, and point-of-sale terminals.

• 64K Non-Volatile SRAM: Provides 64K bytes of SRAM with non-volatile data retention for critical applications.
• Integrated Phantom Clock: Built-in real-time clock with full calendar function, including leap-year compensation up to 2100.
• Automatic Power-Fail Detection and Switching: Ensures seamless transition to a backup power source without data loss.
• Wide Operating Temperature Range: Designed for use in diverse environments, with an operating range from -40°C to +105°C.
• Low Power Consumption: Efficient power usage during both standard operation and backup modes.
• Drop-in Replacement: Directly replaces battery-backed SRAMs, offering a straightforward upgrade path for existing designs.
