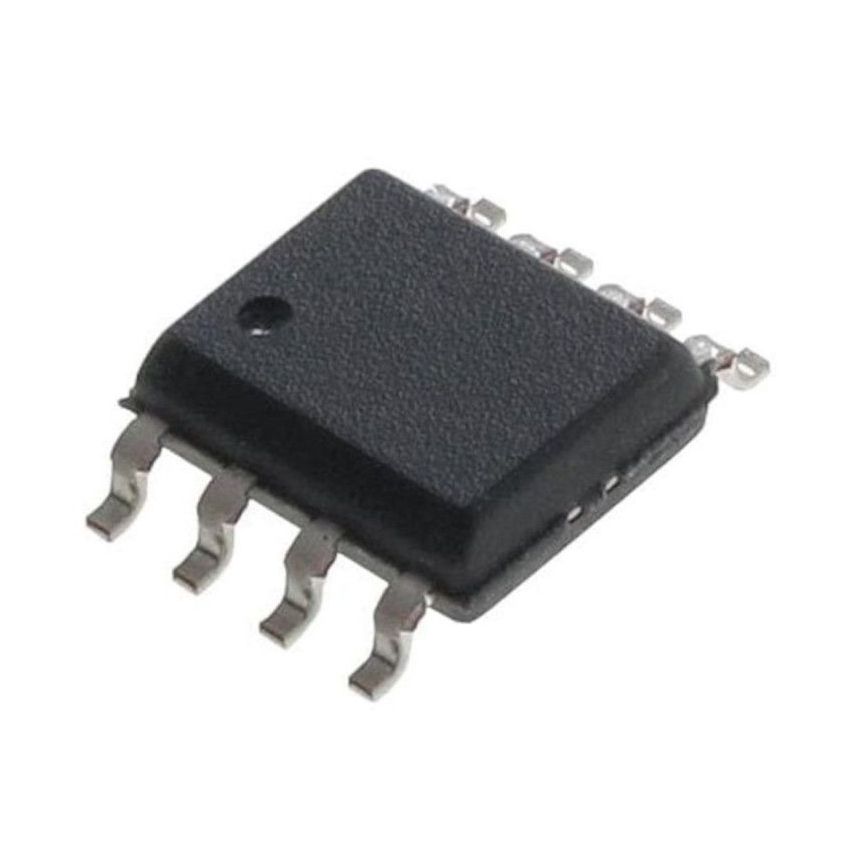

FAN7380 Half Bridge Gate Driver IC 600V 250kHz 8SOIC

The FAN7380 is a monolithic high- and low-side gate drive IC from onsemi designed for high-voltage applications such as motor drives, power supplies, and fluorescent lamp ballasts. This driver supports a floating channel that can operate up to +600V, making it suitable for bootstrap configurations. It features undervoltage lockout protection for both high-side and low-side drivers to ensure reliable operation during power-up and power-down sequences. With TTL-compatible inputs, a built-in dead time of 100ns, and the ability to switch at frequencies up to 250kHz, the FAN7380 ensures safe and efficient driving of MOSFETs or IGBTs in half-bridge configurations.

Key Features:

• Floating channel for bootstrap operation to +600V
• 100ns built-in dead time
• Undervoltage lockout for both channels
• TTL/CMOS compatible inputs
• 250kHz switching frequency
• 8-pin SOIC package

Additional Specifications:

• Package Type: 8-SOIC
• Supply Voltage: 20V
• Current: 90mA
• Type: Half-Bridge Gate Driver IC
