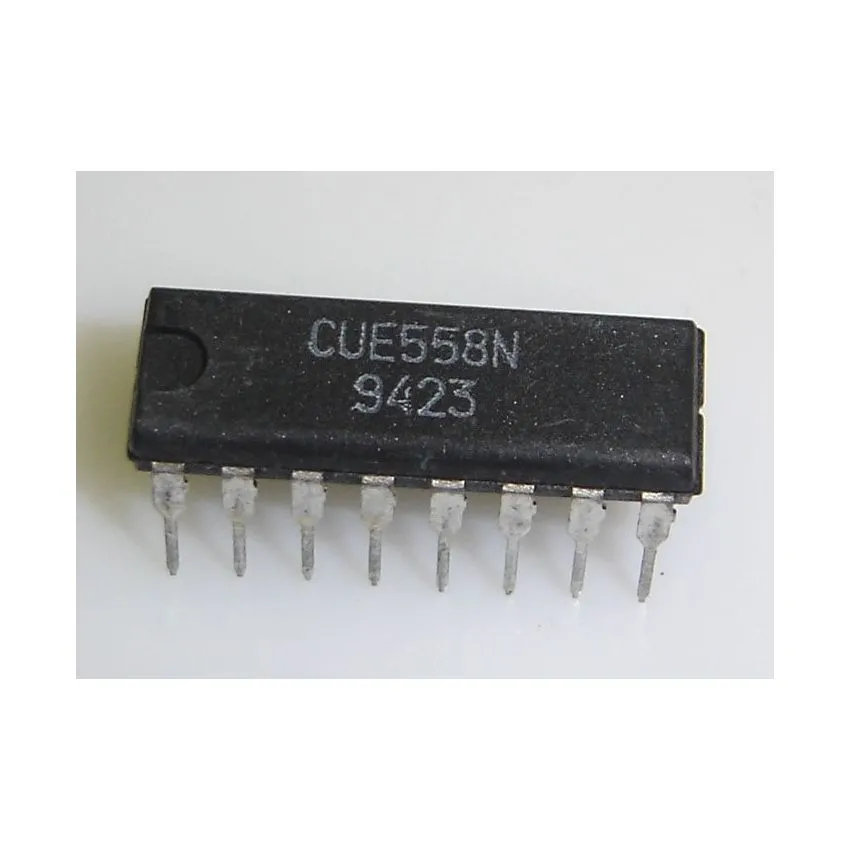

CUE558N, Quad Timer IC, 4 Independent Timers, DIP-16

p>The CUE558N is a quad timer IC, providing four independent timers within a single DIP-16 package. It is functionally equivalent to the NE558N and offers versatile timing operations, including monostable and astable configurations. This makes it perfect for time delay generation, frequency division, pulse width modulation (PWM), and LED flasher circuits. Operating over a wide voltage range of 4.5V to 16V, the CUE558N delivers reliable performance with high output drive capability, supporting up to 200mA per timer. Its adjustable duty cycle ensures flexibility in pulse width modulation applications, while its temperature stability allows for consistent operation across varying environmental conditions. The CUE558N is widely used in automation, control systems, and signal processing applications. The standard DIP-16 package makes it easy to integrate into breadboard circuits and through-hole PCB designs, making it an ideal choice for electronics enthusiasts and professionals alike.

Key Features :

• Quad Timer IC – Integrates four independent timers in a single DIP-16 package, reducing circuit complexity.
• Wide Operating Voltage Range – Functions efficiently between 4.5V and 16V, offering compatibility with diverse applications.
• Multiple Timing Modes – Supports monostable and astable operations, making it versatile for pulse generation and sequencing.
• High Output Current – Capable of sourcing or sinking up to 200mA, ideal for driving LEDs, relays, and other components.
• Adjustable Duty Cycle – Allows fine-tuning of output pulse width for precise control in frequency generation.
• Temperature Stability – Designed for reliable operation across a broad temperature range, ensuring consistent performance.
