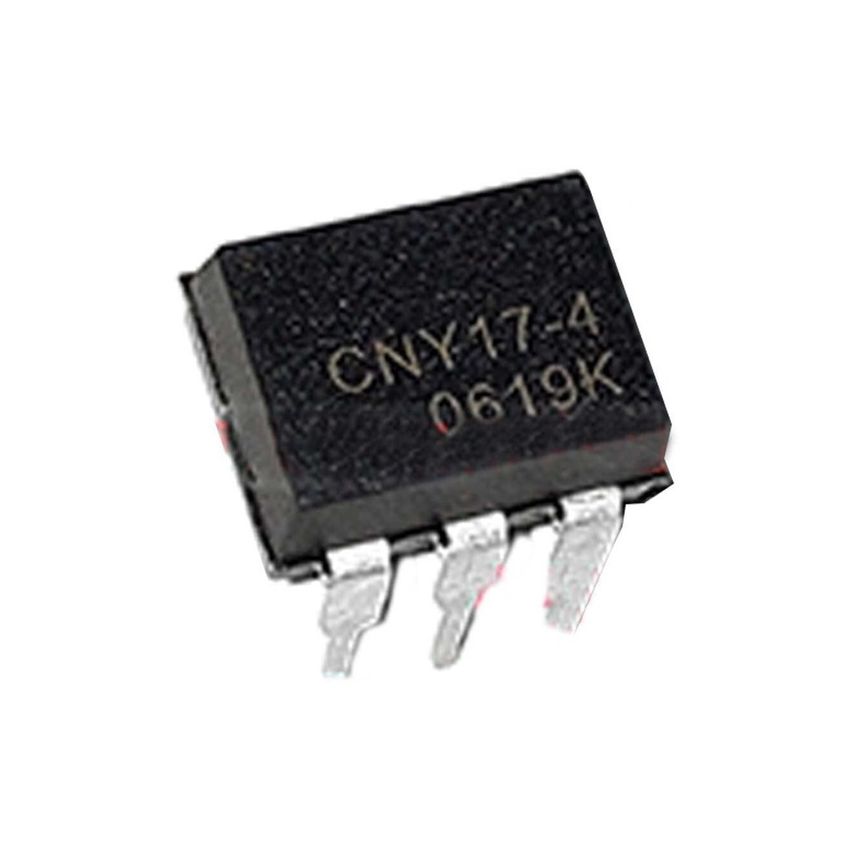

CNY17-4,High Gain Optocoupler,DIP-6

SKU
SCIx0769
Part Number
CNY74-4
Brand:
Delivery in 2-5 Weeks.
Pre-Order
Out Of Stock

Notify me when this product is available:

Guarantee safe & secure checkout

The 4N35 is an optocoupler designed for applications where electrical isolation between input and output is necessary. Featuring a gallium arsenide infrared LED and a silicon NPN phototransistor, this component ensures safe and efficient signal transmission. With a high isolation voltage of 5000V and a collector-emitter voltage of up to 30V, it is suitable for a wide range of electronic devices, including power supplies, microcontrollers, and various communication systems. Encased in a standard DIP-6 package, the 4N35 offers ease of use and reliable performance, making it a preferred choice for engineers and electronic hobbyists alike.

This optocoupler operates with a forward current of 60mA and a forward voltage of just 1.2V, ensuring low power consumption. It is designed with a through-hole mounting style for easy installation on PCBs, making it a versatile component for signal transmission, electrical isolation, and safety.

Key Features :
  • High Isolation Voltage: Features a high isolation voltage of 5000V, ensuring reliable separation between input and output circuits.
  • Low Forward Voltage: Efficient operation with a forward voltage of just 1.2V, allowing low power consumption.
  • Compact DIP-6 Package: Comes in a standard DIP-6 package, making it easy to integrate into various electronic designs.
  • High Collector-Emitter Voltage Rating: Supports up to 30V collector-emitter voltage (VCEO), enabling use in a variety of circuit applications.
  • Versatile Applications: Ideal for signal transmission and electrical isolation in various electronics, including power supplies, microcontrollers, and communication systems.
  • Easy Mounting Style: Designed with a through-hole mounting style, making it easy to solder onto printed circuit boards (PCBs).
More Information
Brand Generic
GTIN 1,
IC type N/A
