CA3086, General-Purpose NPN Transistor Array, 15V , 50mA

SKU
SCIx0747
Part Number
CA3086
Brand:
Categories:
Delivery in 2-5 Weeks.
Pre-Order
Add to Wish List

Guarantee safe & secure checkout

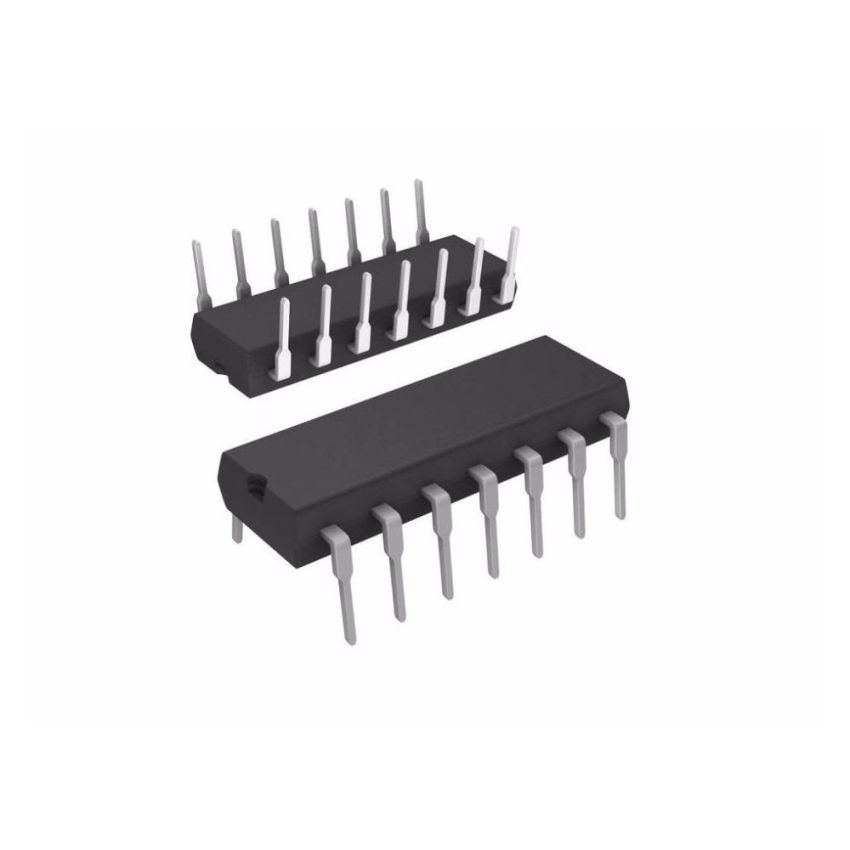

The CA3086-DIP is a general-purpose NPN transistor array featuring three isolated transistors and one differentially connected transistor pair, making it ideal for DC to 120MHz low-power applications. Manufactured in a 14-lead Dual-In-Line (DIP) plastic package, it provides temperature-compensated performance suitable for high-frequency amplification and switching circuits.

This array is tailored for general-purpose applications such as signal processing systems, amplifiers, and low-power systems. It supports operation within a wide temperature range of -40°C to 85°C and storage conditions of -65°C to 150°C. Its robust design ensures reliable performance in compact circuit designs.

Each transistor within the array has a collector-emitter breakdown voltage of 15V and can handle a maximum collector current of 50mA, offering versatility across numerous applications.


Key Features:

  • High-Frequency Performance: Operates efficiently in systems from DC to 120MHz.
  • Integrated Design: Includes three isolated transistors and one differentially connected pair for flexibility.
  • Compact 14-Pin DIP Package: Provides ease of handling and integration into circuit designs.
  • Wide Temperature Range: Operational range from -40°C to 85°C, with storage from -65°C to 150°C.
  • Low Power Dissipation: Total package dissipation up to 750mW at 25°C.
  • Stable Thermal CharacteristIcs: Ensures consistent performance across varied operating conditions.
More Information
Package Type DIP-14
IC type NPN Transistor Array
Mounting Style Through Hole
Function N/A
