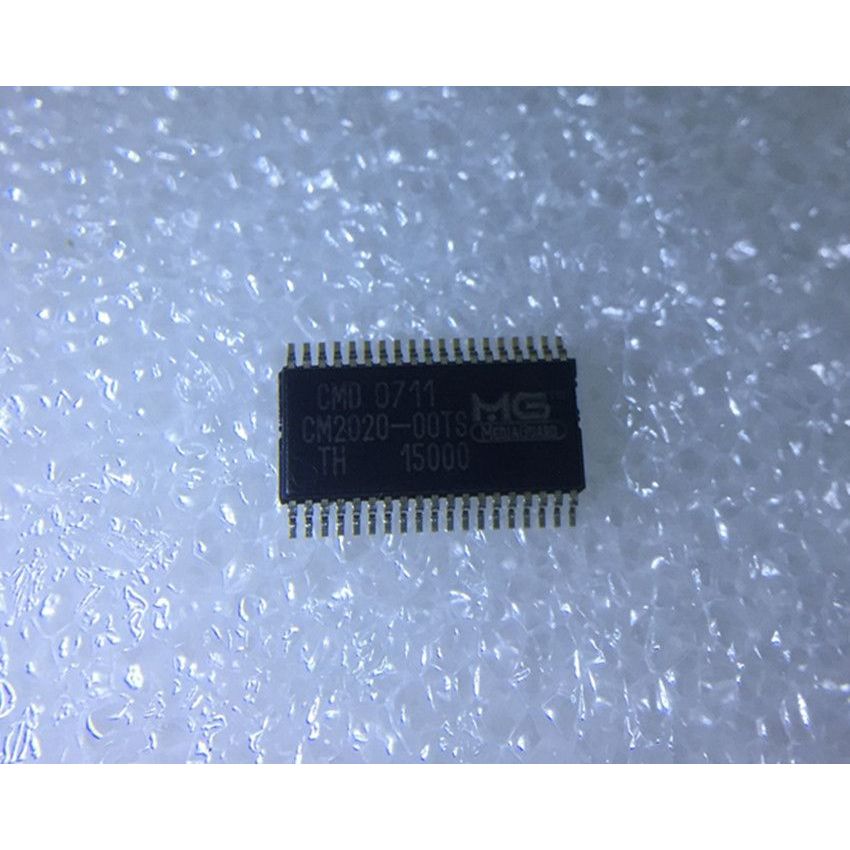

CM2020-00TS ,HDMI Transmitter Port Protection Interface Device, 38-Pin TSSOP, ±8kV ESD Protection

The CM2020-00TS is a specialized HDMI transmitter port protection and interface device designed to safeguard HDMI interfaces from ESD and overcurrent damage. This integrated package provides exceptional ESD protection, level shifting, and overcurrent output protection, meeting the needs of modern consumer electronics like PCs, digital televisions, and set-top boxes.

Operating with ±8kV ESD tolerance, the CM2020-00TS offers simplified layout for HDMI connectors and incorporates both 3.3V and 5V supply voltage levels. With robust design specifications, this device ensures reliable signal integrity and interface protection, making it suitable for high-definition video applications.

Key Features :

• High ESD Protection: Supports up to ±8kV ESD on all HDMI signal channels for robust protection.
• Low Capacitance: Only 0.05pF matching capacitance between TMDS intra-pair lines, ensuring minimal signal loss.
• Level Shifting Circuitry: Facilitates smooth interfacing between different voltage domains.
• Overcurrent Protection: Integrated overcurrent output drop (75mA) to guard against power surges.
• High Compatibility: Specifically designed for HDMI applications, compatible with HDMI 1.3 and 1.4 standards.
• Compact TSSOP Package: Occupies minimal PCB space with 38-pin TSSOP configuration.
