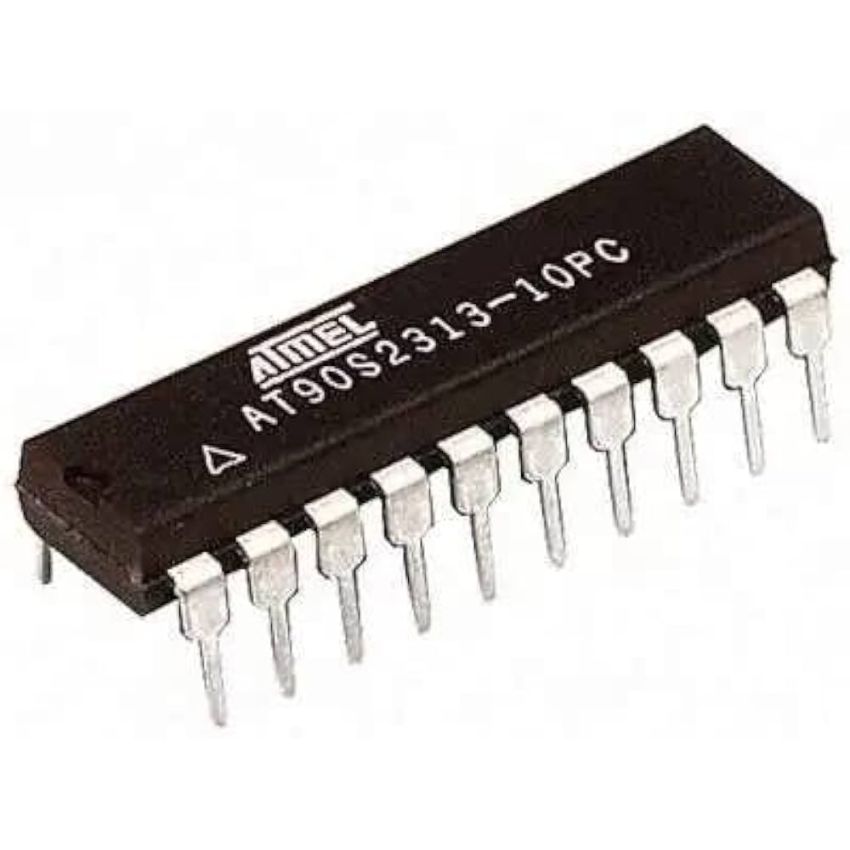

The AT90S2313-10PC is a high-performance, low-power 8-bit AVR microcontroller, designed for embedded control applications that require high processing efficiency and low power consumption. Built on AVR RISC architecture, this microcontroller executes most instructions in a single clock cycle, achieving 10 MIPS throughput at 10MHz.
Equipped with 2K bytes of reprogrammable Flash memory, 128 bytes of EEPROM, and 128 bytes of SRAM, the AT90S2313-10PC ensures efficient program execution and non-volatile data storage. The SPI interface allows in-system programming (ISP) for firmware updates without removing the chip, making it ideal for real-time control and automation systems.
This microcontroller includes two timers, a full-duplex UART, PWM capabilities, and a watchdog timer, making it highly versatile for applications in industrial automation, consumer electronics, and embedded networking. Its low power consumption and support for Idle and Power-Down modes make it a suitable choice for battery-powered devices.
Housed in a DIP-20 package, the AT90S2313-10PC is perfect for prototyping and integration into custom circuit designs.
Key Features :- AVR RISC Architecture: High-performance 8-bit microcontroller with single clock cycle instruction execution.
- In-System Programmable (ISP) Flash Memory: Features 2K bytes of reprogrammable Flash, enabling firmware updates.
- Integrated EEPROM & RAM: Includes 128 bytes of EEPROM for non-volatile storage and 128 bytes of SRAM for efficient program execution.
- High-Speed Operation: Supports clock speeds up to 10MHz, offering up to 10 MIPS throughput.
- Low Power Consumption: Supports Idle and Power-Down modes, reducing energy usage in standby conditions.
- Compact DIP-20 Package: Designed for easy integration and prototyping in embedded control applications.
