AT28LV010-20JI, 1Mbit (128K x 8) Low Voltage CMOS EEPROM, PLCC-32

The AT28LV010-20JI is a 1Mbit (128K x 8) Low Voltage CMOS EEPROM, designed for high-performance and power-efficient applications requiring reliable non-volatile memory storage. Manufactured using Atmel’s advanced CMOS technology, it provides fast 200ns access times while consuming minimal power.

This EEPROM operates at 3.3V ± 10%, making it compatible with modern low-power embedded systems and battery-operated devices. The built-in page write functionality allows for 1 to 128-byte write cycles, significantly improving write efficiency with a maximum 10ms page write cycle time.

For data security, the AT28LV010-20JI includes hardware and software data protection mechanisms, preventing unintended write operations. It also features Data Polling and Toggle Bit methods for detecting the completion of write operations.

The PLCC-32 package ensures compact integration into modern electronic systems, making it an excellent choice for industrial applications, embedded controllers, firmware storage, and consumer electronics.

• 1Mbit EEPROM: Organized as 128K x 8-bit, providing high-density non-volatile storage.
• Low Voltage Operation: Operates at 3.3V ± 10%, making it suitable for low-power embedded systems.
• Fast Access Time: Features a 200ns read access time, ensuring quick data retrieval.
• Page Write Capability: Supports 1 to 128-byte page write operations, reducing write time to 10ms maximum per page.
• Built-in Data Protection: Includes hardware and software data protection against accidental writes.

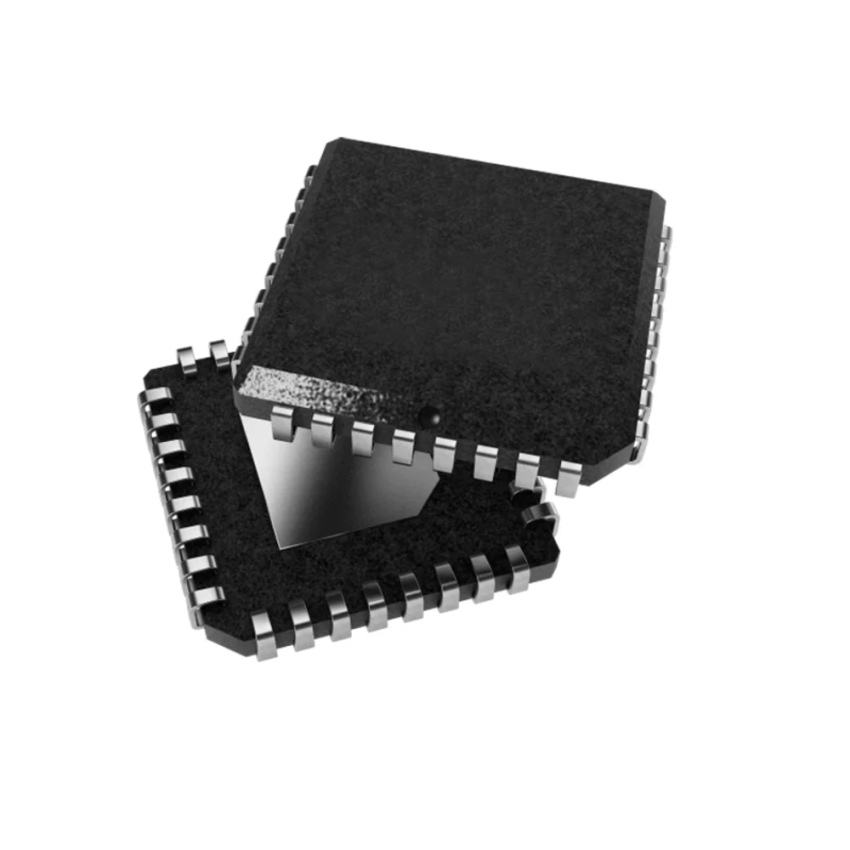

• PLCC-32 Package: Industry-standard 32-pin J-Leaded Chip Carrier (PLCC) for compact integration.
