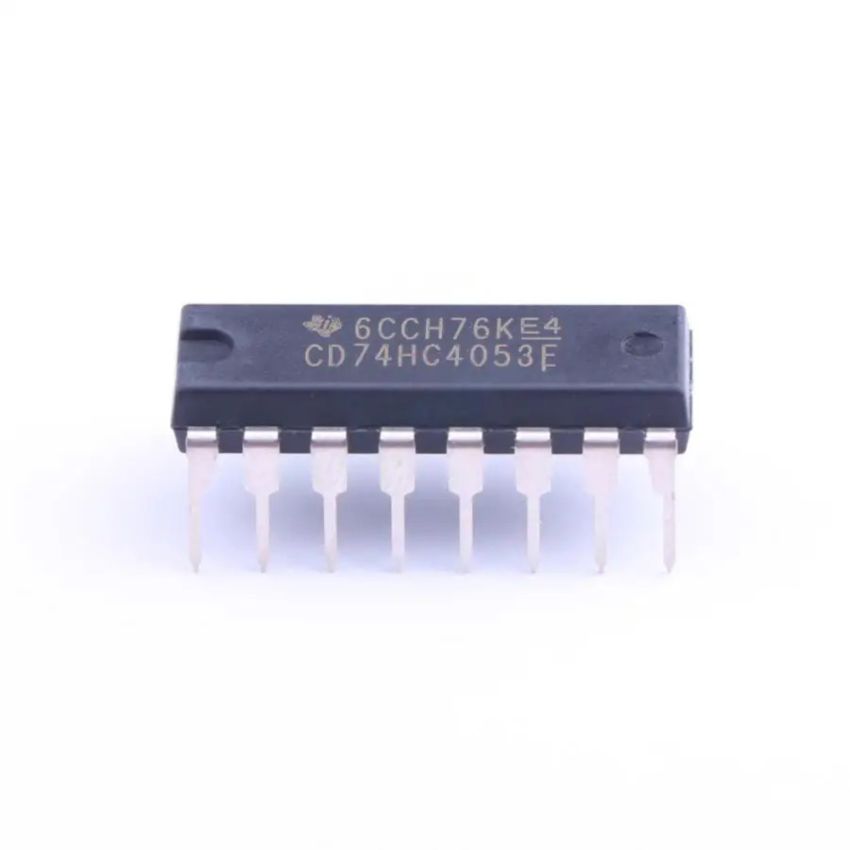

CD74HC4053E, Triple 2-Channel Analog Multiplexer/Demultiplexer,PDIP-16

The CD74HC4053E is a Triple 2-Channel Analog Multiplexer/Demultiplexer that enables signal selection and routing in high-speed analog and digital systems. It features low ON resistance, ensuring minimal signal degradation, and operates within a wide voltage range (2V to 6V), making it ideal for both low-power and standard CMOS applications.

Each multiplexer channel can switch between two input signals, allowing flexible data routing. With a fast propagation delay, the CD74HC4053E is well-suited for applications such as signal processing, audio switching, and industrial automation. Additionally, it features break-before-make switching, preventing short circuits when transitioning between signals.

Packaged in a PDIP-16 form factor, the CD74HC4053E is an industry-standard choice for analog signal selection, reducing component count and simplifying circuit design in embedded systems.

• Triple 2-Channel Multiplexer/Demultiplexer: Allows switching between two signals per channel.
• Wide Voltage Range: Operates between 2V and 6V, making it compatible with standard CMOS logic circuits.
• Low ON Resistance: Typically 40Ohm at 9V supply, ensuring minimal signal loss.
• Fast Switching Time: Provides high-speed operation for analog and digital applications.
• High Noise Immunity: Designed for robust signal integrity in high-performance systems.
• Industry-Standard PDIP-16 Package: Ensures easy integration into through-hole PCB designs.
