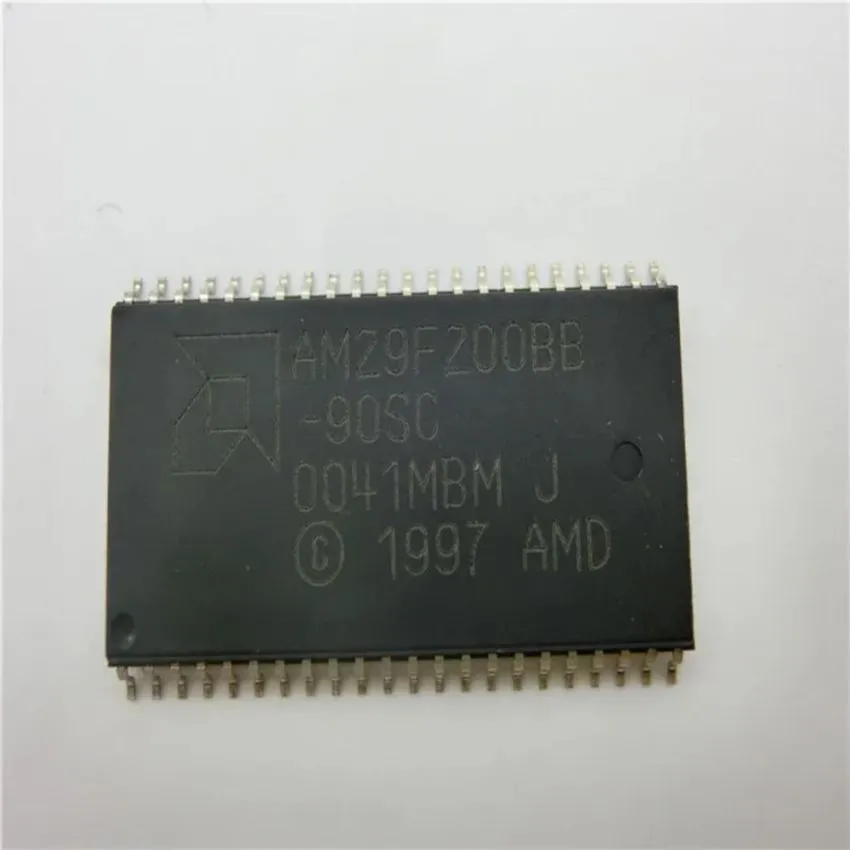

AM29F200BB-90SC, 2Mb Flash Memory, SOP-44

The AM29F200BB-90SC is a 2 Megabit (256K x 8-bit / 128K x 16-bit) CMOS Flash Memory designed to operate with a single 5V power supply, eliminating the need for an external high-voltage power source. It features a boot sector architecture, allowing for flexible memory management, and supports both byte and word access modes.

This Flash memory operates with a maximum access time of 90ns, making it suitable for high-speed microprocessors. It also features a sector erase architecture, which enables individual sector erasure while preserving data in other sectors. With embedded algorithms for programming and erasing, the device simplifies firmware updates and bootloader applications.

The AM29F200BB-90SC is JEDEC-compatible, ensuring smooth integration into existing systems. Its low power consumption, with a typical active read current of 20mA in byte mode and 28mA in word mode, makes it ideal for portable and battery-powered applications. The memory is available in a 44-pin Small Outline Package (SOP-44) for compact and efficient PCB layouts.

• High-Performance Flash Memory: 2 Megabit (256 K x 8-Bit/128 K x 16-Bit) CMOS Flash Memory for embedded applications.
• Fast Access Time: Supports access times as fast as 90ns, ideal for high-speed operations.
• Single 5V Power Supply: No additional programming voltage required, simplifying system design.
• Sector-Based Erase Architecture: Supports full chip erase and sector erase with a flexible memory organization.
• Low Power Consumption: Active read current as low as 20mA (byte mode) and standby current of 1µA, making it energy-efficient.
• JEDEC-Compatible: Complies with standard JEDEC pinouts and software commands, ensuring compatibility with other devices.
