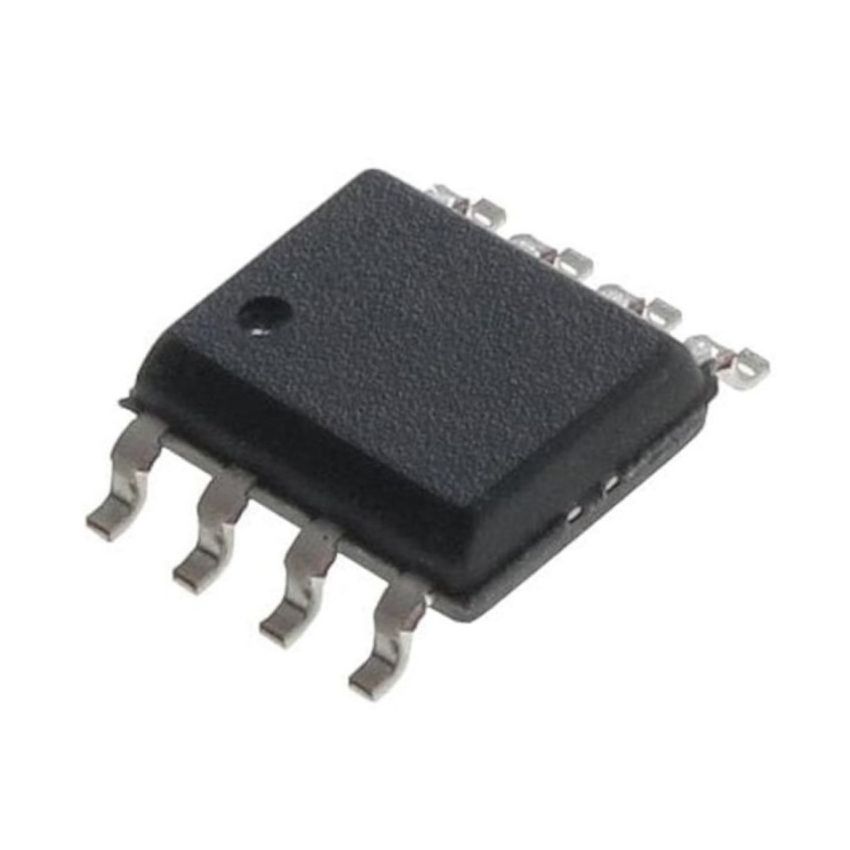

AT93C86,16Kb EEPROM IC Microwire Interface SOP 8 2.7 to 5.5V

The AT93C86 is a 16Kb Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed by Microchip (formerly Atmel). It features a Microwire-compatible 3-wire interface, supporting both 8-bit and 16-bit data formats, offering flexibility for various embedded applications.

Key Features:

• 16Kb EEPROM (2048 x 8-bit or 1024 x 16-bit organization)
• Microwire-compatible 3-wire serial interface
• Operating voltage range: 2.7V to 5.5V
• Endurance: 1,000,000 write/erase cycles
• Data retention: 100 years
• Compact SOP-8 surface-mount package

Additional Specifications:

• Memory Type: EEPROM
• Interface Type: Microwire
• Supply Voltage: 5.5V
• Memory Size: 16Kb
