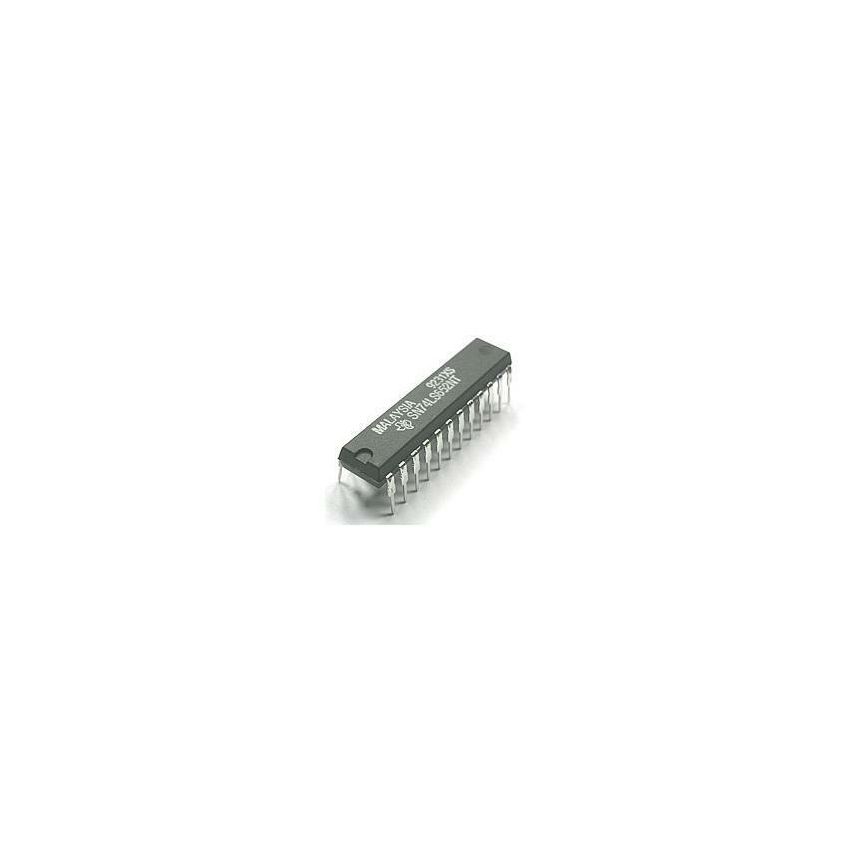

SN74LS652NT-DIP, Octal Bus Transceiver – High-Speed Data Communication with Multiplexed Data Paths

The SN74LS652NT-DIP is a versatile and high-performance octal bus transceiver and registered bus transceiver, designed for efficient data exchange and communication between two buses. Featuring D-type flip-flops and control circuitry, this IC is arranged for multiplexed transmission of data either directly from the data bus or from internal storage registers. It supports both real-time and stored data paths, providing the flexibility needed for a wide range of digital applications. The device includes independent registers and enables controls for both A and B buses, with a choice of 3-state or open-collector outputs, making it ideal for use in complex bus management tasks where multiple data paths and configurations are required.

With its reliable design and high-speed operation, the SN74LS652NT-DIP ensures dependable communication and data integrity across different sections of digital systems, such as computer backplanes, peripheral interfaces, and data acquisition systems. Encapsulated in a 24-pin Dual In-line Package (DIP) for through-hole mounting, it is well-suited for both prototyping and production environments.>

• Multiplexed Real-Time and Stored Data Paths: Offers flexibility with both real-time and stored data transmission, allowing for versatile data handling in various applications.
• Independent Registers and Enables for A and B Buses: Provides control over data flow in both directions, enabling complex bus management and data exchange between different system components.
• Choice of 3-State or Open-Collector Outputs: Supports different output configurations for compatibility with various digital environments, enhancing the versatility of the IC.
• High-Speed Data Exchange: Ensures rapid and reliable data transfer, essential for applications requiring efficient communication between system buses.
• Integrated D-Type Flip-Flops: Offers internal storage and control capabilities, enhancing the IC’s ability to handle both real-time and stored data operations seamlessly.
• Dual In-line Package (DIP) for Through-Hole Mounting: Easy to install and integrate into various systems, ideal for both prototyping and production uses.
