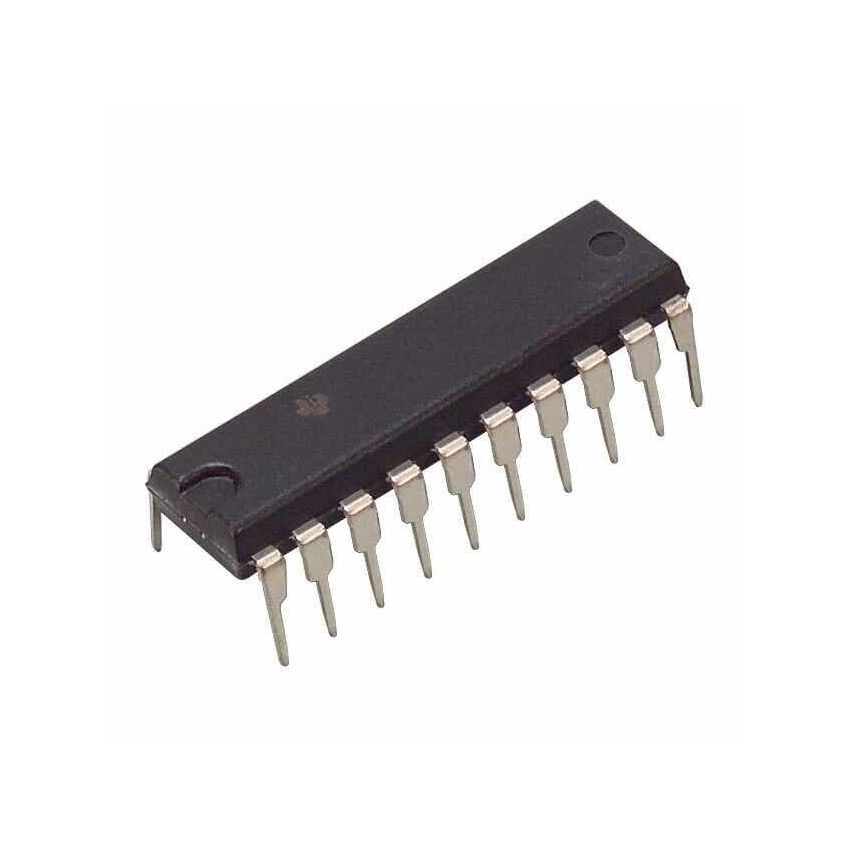

SN74HC573N Octal D-Type Transparent Latch IC 3-State Outputs DIP-20 5V Logic Control

The SN74HC573N is an octal (8-bit) D-type transparent latch with 3-state outputs from Texas Instruments. When the latch enable (LE) input is high, data at the D inputs is latched and passed directly to the outputs. When LE goes low, the last data is held. The output enable (OE) input allows the outputs to enter a high-impedance state for bus-oriented applications.

Key Features:

• 8-bit D-type transparent latch with 3-state outputs
• Wide operating voltage: 2V to 6V
• High-speed CMOS logic with TTL-compatible inputs
• 20-pin DIP package for through-hole mounting
• Low power consumption and high noise immunity
• Latch enable and output enable control lines

Additional Specifications:

• Package Type: DIP-20
• Type: Octal D-Type Transparent Latch with 3-State Outputs
• Timing Mode: Level-Triggered
• Supply Voltage: 6V
• Count Rate: 40 MHz
